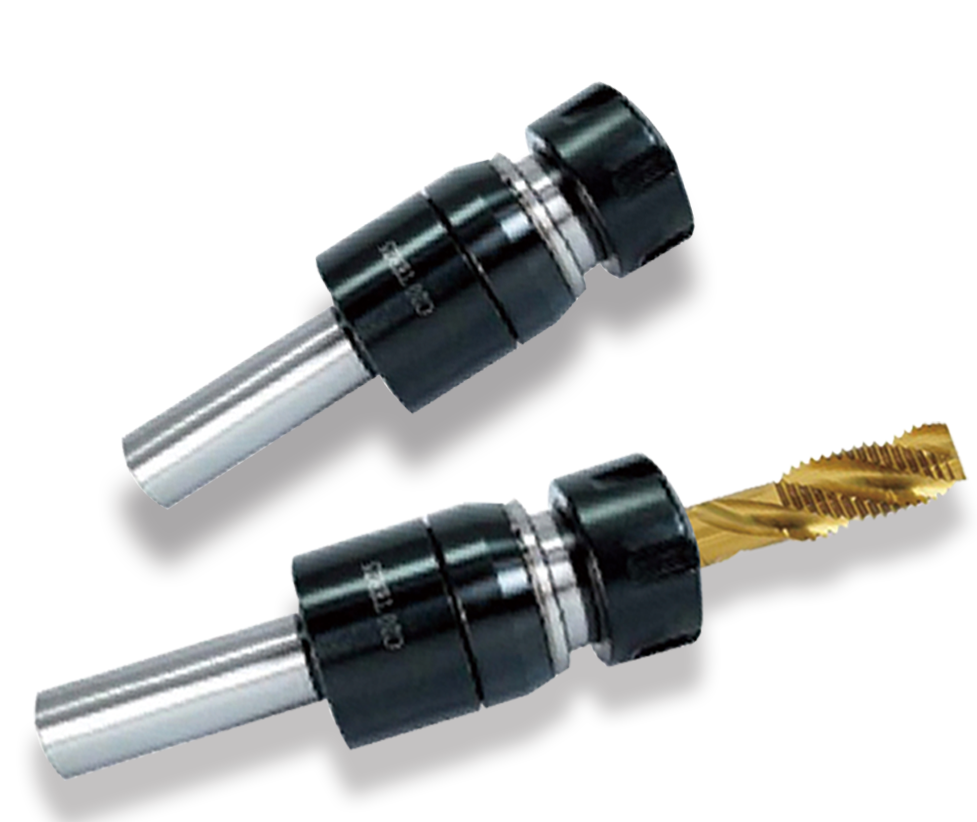

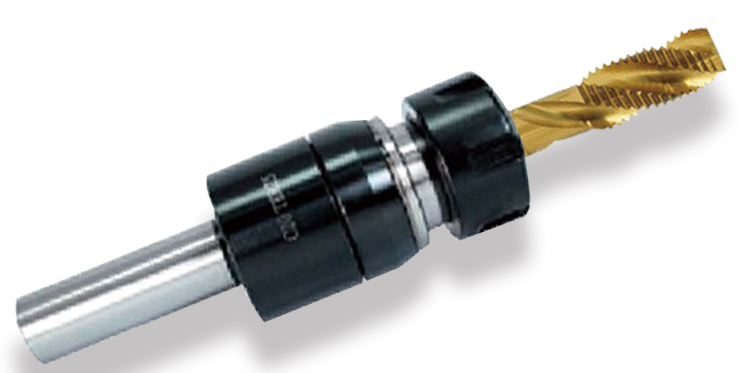

C20/TER 直柄剛性伸縮攻牙器
產品特點
型號 : C20/TER
TER伸縮攻牙本體須搭配ER筒夾做使用使用時,螺帽請勿過度鎖緊以免造成本體及螺帽損壞
直柄剛性伸縮攻牙器
直柄剛性伸縮攻牙器C-TER

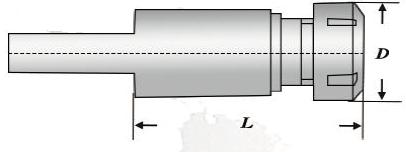

訂購編號 | D | L | L1 | L2 | Tapping Range | Weight(kg) |
C20-TER16 | 28 | 75 | 5 | 12 | M3~M10 | 0.40 |
C20-TER20 | 34 | 80 | 5 | 12 | M3~M12 | 0.50 |
C20-TER25 | 42 | 80 | 5 | 12 | M3~M16 | 0.80 |
C25-TER16 | 28 | 75 | 5 | 12 | M3~M10 | 0.50 |
C25-TER20 | 34 | 80 | 5 | 12 | M3~M12 | 0.60 |
C25-TER25 | 42 | 80 | 5 | 12 | M4~M16 | 0.90 |
C25-TER32 | 50 | 80 | 5 | 8 | M4~M22 | 1.10 |
C32-TER16 | 28 | 75 | 5 | 12 | M3~M10 | 0.70 |
C32-TER20 | 34 | 80 | 5 | 12 | M3~M12 | 0.80 |
C32-TER25 | 42 | 80 | 5 | 12 | M4~M16 | 1.00 |
C32-TER32 | 50 | 80 | 5 | 8 | M4~M22 | 1.20 |

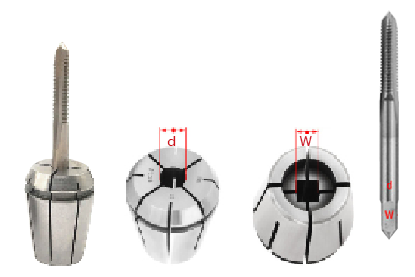

TER絲攻筒夾
TER16 夾持範圍:M2~M12
TER20 夾持範圍:M2~M14
TER25 夾持範圍:M3~M20
TER32 夾持範圍:M3~M24
| 國際標準ISO | 日標JIS | ||||
| 絲攻規格 | d | W口 | 絲攻規格 | d | W口 |
| M2 | 2.5 | 2 | M2 | 3 | 2.5 |
| M3 | 3.15 | 2.5 | M3 | 4 | 3.2 |
| M4 | 4 | 3.15 | M4 | 5 | 4 |
| M5 | 5 | 4 | M5 | 5.5 | 4.5 |
| M6 | 6.3 | 5 | M6 | 6 | 4.5 |
| M8 | 6.3 | 5 | M8 | 6.2 | 5 |
| M10 | 8 | 6 | M10 | 7 | 5.5 |
| M12 | 9 | 7.1 | M12 | 8.5 | 6.5 |
| M14 | 11.2 | 9 | M14 | 10.5 | 8 |
| M16 | 12.5 | 10 | M16 | 12.5 | 10 |
| M18 | 14 | 11.2 | M18 | 14 | 11 |
| M20 | 14 | 11.2 | M20 | 15 | 12 |
| M22 | 16 | 12.5 | M22 | 17 | 13 |
| M24 | 18 | 14 | M24 | 19 | 15 |
