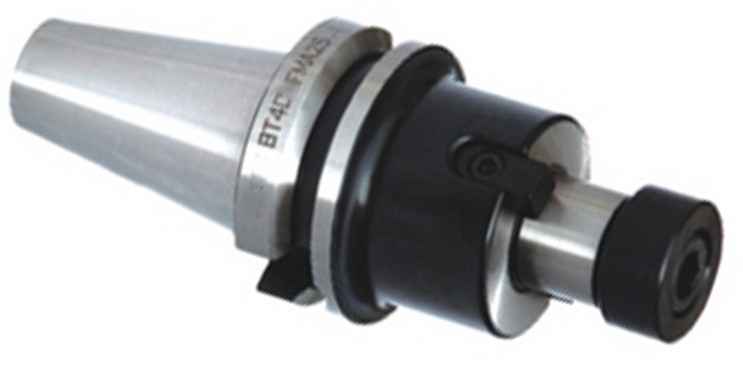

BT/FMB 平面銑刀桿
產品特點
型號 : BT/FMB
用螺絲和驅動鍵面銑刀柄裝備裝配面銑刀刀到架面銑刀必須單獨訂購。
平面銑刀桿
BT/FMB 平面銑刀桿

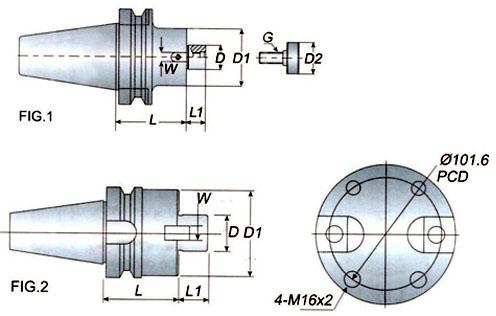

FMA/型號 | FIG. | D | D1 | D2 | L | L1 | W | G | Weight(kg) |
BT30-FMB22-45L | 1 | 22 | 56 | - | 45 | 18 | 10 | M10 | 0.8 |
BT30-FMB27-45L | 1 | 27 | 64 | 32 | 45 | 20 | 12 | M12 | 1 |
BT40-FMB22-45L | 1 | 22 | 48 | - | 45 | 18 | 10 | M10 | 1.4 |
BT40-FMB22-60L | 1 | 22 | 48 | - | 60 | 18 | 10 | M10 | 1.6 |
BT40-FMB22-90L | 1 | 22 | 48 | - | 90 | 18 | 10 | M10 | 2.1 |
BT40-FMB22-120L | 1 | 22 | 48 | - | 120 | 18 | 10 | M10 | 2.4 |
BT40-FMB22-150L | 1 | 22 | 48 | - | 150 | 18 | 10 | M10 | 2.8 |
BT40-FMB22-200L | 1 | 22 | 48 | - | 200 | 18 | 10 | M10 | 3.5 |
BT40-FMB22-250L | 1 | 22 | 48 | - | 250 | 18 | 10 | M10 | 3.5 |
BT40-FMB27-45L | 1 | 27 | 60 | 32 | 45 | 20 | 12 | M12 | 1.7 |
BT40-FMB27-60L | 1 | 27 | 60 | 32 | 60 | 20 | 12 | M12 | 2 |
BT40-FMB27-90L | 1 | 27 | 60 | 32 | 90 | 20 | 12 | M12 | 2.6 |
BT40-FMB32-60L | 1 | 32 | 63 | 41 | 60 | 21 | 14 | M16 | 2.1 |
BT40-FMB40-60L | 1 | 40 | 68 | 47 | 60 | 23 | 16 | M16 | 2.7 |
BT50-FMB22-45L | 1 | 22 | 48 | - | 45 | 18 | 10 | M10 | 4 |
BT50-FMB22-75L | 1 | 22 | 48 | - | 75 | 18 | 10 | M10 | 4.5 |
BT50-FMB22-105L | 1 | 22 | 48 | - | 105 | 18 | 10 | M10 | 4.8 |
BT50-FMB22-120L | 1 | 22 | 48 | - | 120 | 18 | 10 | M10 | 5.2 |
BT50-FMB22-150L | 1 | 22 | 48 | - | 150 | 18 | 10 | M10 | 5.6 |
BT50-FMB27-75L | 1 | 27 | 65 | 32 | 75 | 20 | 12 | M12 | 5 |
BT50-FMB27-105L | 1 | 27 | 65 | 32 | 105 | 20 | 12 | M12 | 5.8 |
BT50-FMB32-75L | 1 | 32 | 73 | 41 | 75 | 21 | 14 | M16 | 5.4 |
BT50-FMB32-105L | 1 | 32 | 73 | 41 | 105 | 21 | 14 | M16 | 6.6 |
BT50-FMB32-75L | 1 | 40 | 85 | 47 | 75 | 23 | 16 | M16 | 5.9 |
BT50-FMB32-105L | 1 | 40 | 85 | 47 | 105 | 23 | 16 | M16 | 6.9 |
BT50-FMB60-75L | 2 | 60 | 128.6 | - | 75 | 32 | 25.4 | - | 7.3 |
