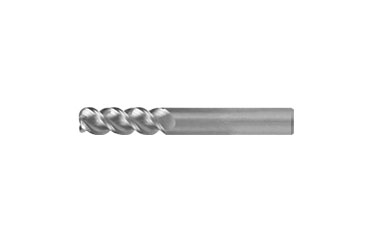

ALR 45º鎢鋼鋁用R角銑刀3刃
產品特點
型號 : ALR
45º鎢鋼銑刀3刃鋁材適用
HRC45以下
0.6u Co10%
45º鎢鋼鋁用R角銑刀3刃

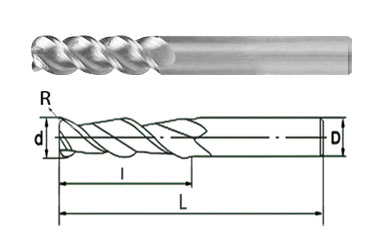

產品編號 | 刃徑 / d | R角 | 刃長 / l | 全長 / L | 柄徑 / D |
ALR-0100204 | 1 | 0.2R | 3 | 50 | 4 |
ALR-0150204 | 1.5 | 0.2R | 5 | 50 | 4 |
ALR-0150504 | 1.5 | 0.5R | 5 | 50 | 4 |
ALR-0200204 | 2 | 0.2R | 6 | 50 | 4 |
ALR-0200504 | 2 | 0.5R | 6 | 50 | 4 |
ALR-0300506 | 3 | 0.5R | 10 | 50 | 6 |
ALR-0301006 | 3 | 1R | 10 | 50 | 6 |
ALR-0400506 | 4 | 0.5R | 12 | 50 | 6 |
ALR-0401006 | 4 | 1R | 12 | 50 | 6 |
ALR-0500506 | 5 | 0.5R | 15 | 50 | 6 |
ALR-0501006 | 5 | 1R | 15 | 50 | 6 |
ALR-0501506 | 5 | 1.5R | 15 | 50 | 6 |
ALR-0600506 | 6 | 0.5R | 18 | 50 | 6 |
ALR-0601006 | 6 | 1R | 18 | 50 | 6 |
ALR-0601506 | 6 | 1.5R | 18 | 50 | 6 |
ALR-0602006 | 6 | 2R | 18 | 50 | 6 |
ALR-0801008 | 8 | 1R | 24 | 75 | 8 |
ALR-0801508 | 8 | 1.5R | 24 | 75 | 8 |
ALR-0802008 | 8 | 2R | 24 | 75 | 8 |
ALR-1001010 | 10 | 1R | 30 | 75 | 10 |
ALR-1001510 | 10 | 1.5R | 30 | 75 | 10 |
ALR-1002010 | 10 | 2R | 30 | 75 | 10 |
ALR-1003010 | 10 | 3R | 30 | 75 | 10 |
ALR-1201012 | 12 | 1R | 30 | 75 | 12 |
ALR-1201512 | 12 | 1.5R | 30 | 75 | 12 |
ALR-1202012 | 12 | 2R | 30 | 75 | 12 |
ALR-1203012 | 12 | 3R | 30 | 75 | 12 |
ALR-1401014 | 14 | 1R | 45 | 100 | 14 |
ALR-1402014 | 14 | 2R | 45 | 100 | 14 |
ALR-1403014 | 14 | 3R | 45 | 100 | 14 |
ALR-1601016 | 16 | 1R | 50 | 100 | 16 |
ALR-1602016 | 16 | 2R | 50 | 100 | 16 |
ALR-1603016 | 16 | 3R | 50 | 100 | 16 |
ALR-1604016 | 16 | 4R | 50 | 100 | 16 |
ALR-1605016 | 16 | 5R | 50 | 100 | 16 |
ALR-2001020 | 20 | 1R | 50 | 100 | 20 |
ALR-2002020 | 20 | 2R | 50 | 100 | 20 |
ALR-2003020 | 20 | 3R | 50 | 100 | 20 |
ALR-2004020 | 20 | 4R | 50 | 100 | 20 |
ALR-2005020 | 20 | 5R | 50 | 100 | 20 |
