PRODUCTS
2JE 45º 4刃重切削鎢鋼刀
產品特點
型號 : 2JE
2JE 重切削鎢鋼銑刀 4刃HRC45以下
0.6u , Co12%

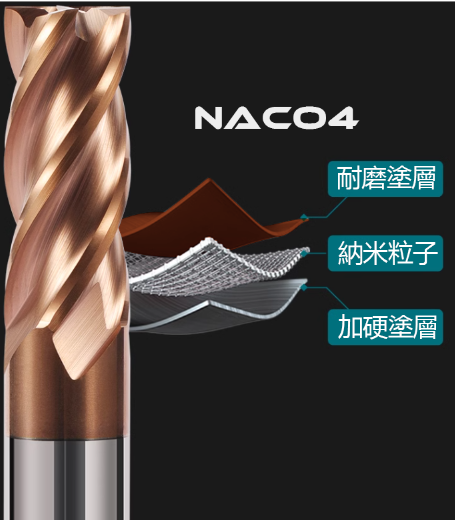

鍍TX
45º 4刃重切削鎢鋼刀
45º 2JE 重切削鎢鋼銑刀4刃 (標準型)

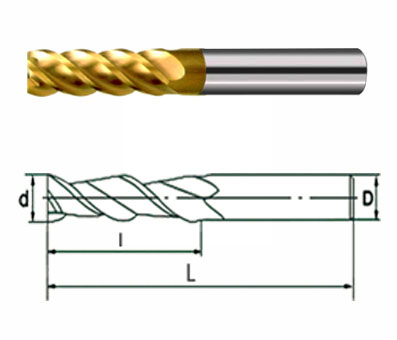

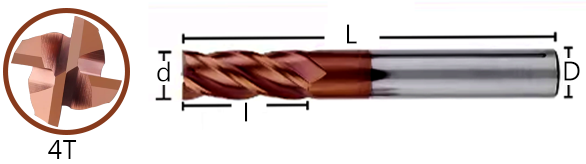

產品編號 | 刃徑 / d | 刃長 / l | 全長 / L | 柄徑 / D |
2JE-0100504 | 1 | 3 | 50 | 4 |
2JE-0150504 | 1.5 | 4 | 50 | 4 |
2JE-0200504 | 2 | 6 | 50 | 4 |
2JE-0250504 | 2.5 | 7 | 50 | 4 |
2JE-0300504 | 3 | 8 | 50 | 4 |
2JE-0300503 | 3 | 8 | 50 | 3 |
2JE-0350504 | 3.5 | 10 | 50 | 4 |
2JE-0400504 | 4 | 11 | 50 | 4 |
2JE-0100506 | 1 | 3 | 50 | 6 |
2JE-0150506 | 1.5 | 4 | 50 | 6 |
2JE-0200506 | 2 | 6 | 50 | 6 |
2JE-0250506 | 2.5 | 7 | 50 | 6 |
2JE-0300506 | 3 | 8 | 50 | 6 |
2JE-0350506 | 3.5 | 10 | 50 | 6 |
2JE-0400506 | 4 | 11 | 50 | 6 |
2JE-0500506 | 5 | 13 | 50 | 6 |
2JE-0600506 | 6 | 15 | 50 | 6 |
2JE-0700608 | 7 | 18 | 60 | 8 |
2JE-0800608 | 8 | 20 | 60 | 8 |
2JE-0900610 | 9 | 23 | 75 | 10 |
2JE-1007510 | 10 | 25 | 75 | 10 |
2JE-1007511 | 11 | 28 | 75 | 12 |
2JE-1210012 | 12 | 30 | 75 | 12 |
2JE-1310016 | 13 | 35 | 100 | 16 |
2JE-1410016 | 14 | 40 | 100 | 16 |
2JE-1510016 | 15 | 40 | 100 | 16 |
2JE-1610012 | 16 | 45 | 100 | 16 |
2JE-1810018 | 18 | 45 | 100 | 20 |
2JE-2010020 | 20 | 45 | 100 | 20 |
產品編號 | 刃徑 / d | 刃長 / l | 全長 / L | 柄徑 / D |
2JEI-0100504 | 1 | 5 | 50 | 4 |
2JEI-0150504 | 1.5 | 8 | 50 | 4 |
2JEI-0200504 | 2 | 10 | 50 | 4 |
2JEI-0250504 | 2.5 | 13 | 50 | 4 |
2JEI-0300756 | 3 | 15 | 50 | 6 |
2JEI-0400756 | 4 | 20 | 75 | 6 |
2JEI-0500756 | 5 | 25 | 75 | 6 |
2JEI-0600756 | 6 | 30 | 75 | 6 |
2JEI-0701008 | 7 | 35 | 100 | 8 |
2JEI-0801008 | 8 | 40 | 100 | 8 |
2JEI-0910010 | 9 | 45 | 100 | 10 |
2JEI-1010010 | 10 | 50 | 100 | 10 |
2JEI-1210012 | 12 | 50 | 100 | 12 |
2JEI-1615016 | 16 | 75 | 150 | 16 |
2JEI-2015020 | 20 | 80 | 150 | 20 |
產品編號 | 刃徑 / d | 刃長 / l | 全長 / L | 柄徑 / D |
2JEL-0100754 | 1 | 2.5 | 75 | 4 |
2JEL-0150754 | 1.5 | 4 | 75 | 4 |
2JEL-0200754 | 2 | 6 | 75 | 4 |
2JEL-0250754 | 2.5 | 7 | 75 | 4 |
2JEL-0300753 | 3 | 8 | 75 | 3 |
2JEL-0300754 | 3 | 8 | 75 | 4 |
2JEL-0400754 | 4 | 11 | 75 | 4 |
2JEL-0100756 | 1 | 2.5 | 75 | 6 |
2JEL-0150756 | 1.5 | 4 | 75 | 6 |
2JEL-0200756 | 2 | 6 | 75 | 6 |
2JEL-0250756 | 2.5 | 7 | 75 | 6 |
2JEL-0300756 | 3 | 8 | 75 | 6 |
2JEL-0300756 | 3 | 8 | 75 | 6 |
2JEL-0400756 | 4 | 11 | 75 | 6 |
2JEL-0500756 | 5 | 13 | 75 | 6 |
2JEL-0600756 | 6 | 15 | 75 | 6 |
2JEL-0807508 | 8 | 20 | 75 | 8 |
產品編號 | 刃徑 / d | 刃長 / l | 全長 / L | 柄徑 / D |
2JEL-0101004 | 1 | 2.5 | 100 | 4 |
2JEL-0151004 | 1.5 | 4 | 100 | 4 |
2JEL-0201004 | 2 | 6 | 100 | 4 |
2JEL-0251004 | 2.5 | 7 | 100 | 4 |
2JEL-0301003 | 3 | 8 | 100 | 3 |
2JEL-0301004 | 3 | 8 | 100 | 4 |
2JEL-0401004 | 4 | 11 | 100 | 4 |
2JEL-0101006 | 1 | 2.5 | 100 | 6 |
2JEL-0151006 | 1.5 | 4 | 100 | 6 |
2JEL-0201006 | 2 | 6 | 100 | 6 |
2JEL-0251006 | 2.5 | 7 | 100 | 6 |
2JEL-0301006 | 3 | 8 | 100 | 6 |
2JEL-0301006 | 3 | 8 | 100 | 6 |
2JEL0401006 | 4 | 11 | 100 | 6 |
2JEL-0501006 | 5 | 13 | 100 | 6 |
2JEL-0601006 | 6 | 15 | 100 | 6 |
2JEL-0701008 | 7 | 18 | 100 | 8 |
2JEL-0801008 | 8 | 20 | 100 | 8 |
2JEL-0910010 | 9 | 23 | 100 | 10 |
2JEL-1010010 | 10 | 25 | 100 | 10 |
2JEL-1210012 | 12 | 30 | 100 | 12 |
產品編號 | 刃徑 / d | 刃長 / l | 全長 / L | 柄徑 / D |
2JEL-0815008 | 8 | 20 | 150 | 8 |
2JEL-1015010 | 10 | 25 | 150 | 10 |
2JEL-1215012 | 12 | 30 | 150 | 12 |
2JEL-1615016 | 16 | 45 | 150 | 16 |
2JEL-2015020 | 20 | 45 | 150 | 20 |
產品編號 | 刃徑 / d | 刃長 / l | 全長 / L | 柄徑 / D |
2JEL-1620016 | 16 | 45 | 200 | 16 |
2JEL-2020020 | 20 | 45 | 200 | 20 |
