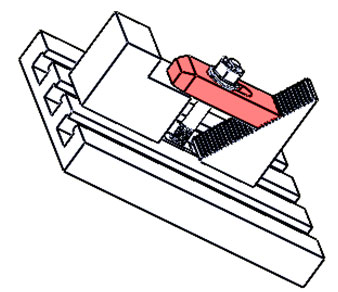

CK 萬能夾具組

產品特點

型號 : CK

用途: 在各種機械工作台面上,用來固定挾持模具、治具板
材質;S45C,表面染黑皮膜處理
熱處理硬度:各種零配件熱處理後硬度為 HRC32±5。
產品組合: 雙頭牙24支、T型螺帽6只、法蘭螺帽6只、連接螺帽4 只、齒型壓板6只、三角級枕6組(12只), 紅色塑膠架
產品規格:英制 3/8”/1/2”/5/8”; 公制 M8/ M10/M12 /M14/M16

萬能夾具組



52-PC set
包裝方式plastic frame/woodentray/wooden case

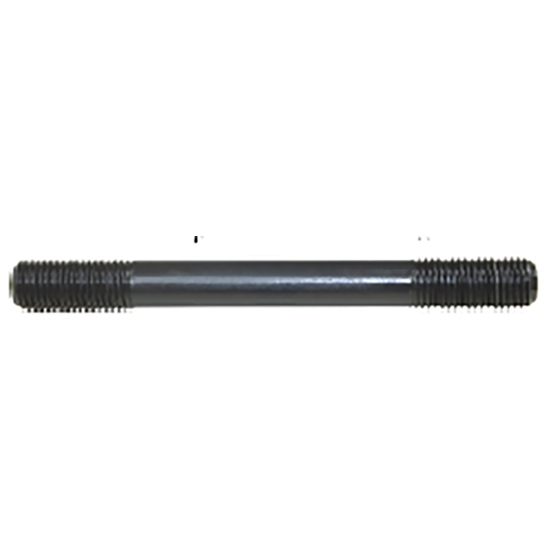

雙頭牙螺桿24 pcs

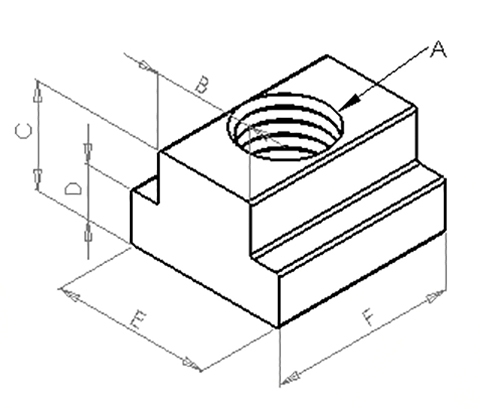

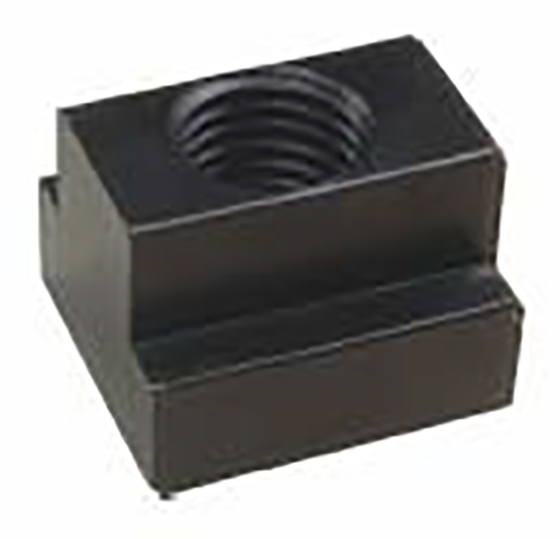

T型螺帽6 pcs

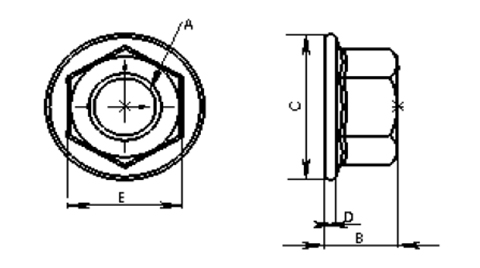

法蘭螺帽6 pcs

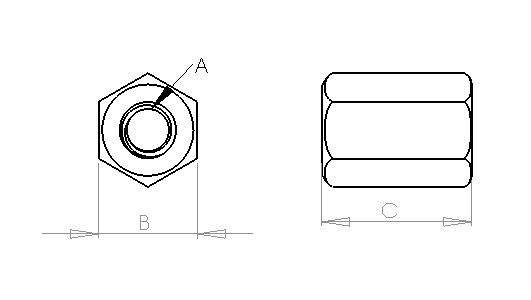

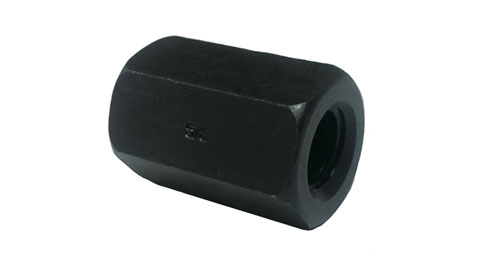

連接螺帽4 pcs

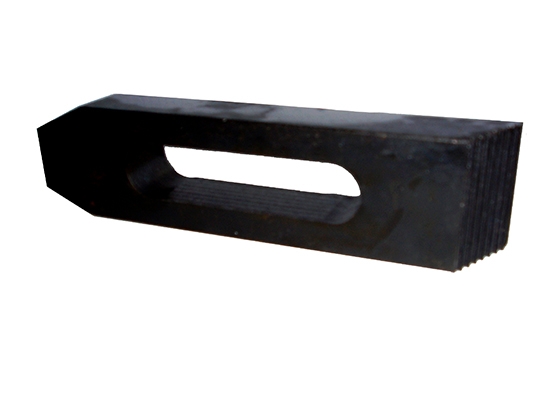

齒型壓板6 pcs

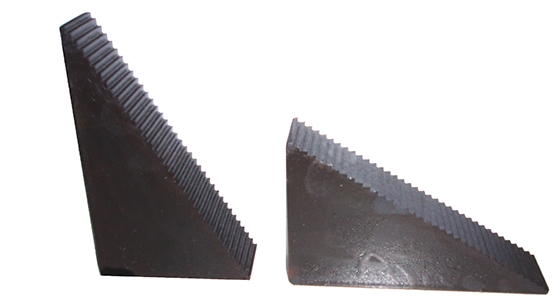

三角級枕6 sets(12 pcs)

MODEL   NO.

  T-SLOT     <T帽規格>

       STEP BLOCK WIDTH            <級枕宽度>

    STUD SIZE       <螺柱尺寸>

             Package            <包裝>

CK-103A

7/16"

1"

3/8"-16

Plastic   frame

塑膠架

CK-103B

 1/2

CK-103C

 9/16

CK-104A1

9/16"

1"

         1/2-16                                                                             Or                                           1/2-13

Plastic   frame

塑膠架

CK-104A2

5/8"

CK-104B1

9/16"

1-1/4"

CK-104B2

5/8"

CK-105A1

11/16"

1"

5/8-11

Plastic   frame

塑膠架

CK-105A2

 3/4"

CK-105B1

11/16"

1-1/4"

CK-105B2

 3/4"

CK-106A

13/16"

1-1/2"


       Wood  frame         木頭架

CK-106B

 7/8"

CK-107

1"

2"

CK-108

1-1/16"

2"


Wood   BOX

木箱

CK-8

10

25

M8x1.25

Plastic   frame

塑膠架

CK-10

12

25

M10x1.50P

CK-12A1

14

25

M12x1.75P

CK-12A2

16

25

CK-12B1

14

32

CK-12B2

16

32

CK-14A

16

25

M14x2.0P

CK-14B

16

32

CK-16A

18

25

M16x2.0P

CK-16B

18

32

CK-18

20

38

M18x2.5P

        Wood  frame        木頭架

CK-20

22

38


CK-24

28

50


Wood   BOX 木箱

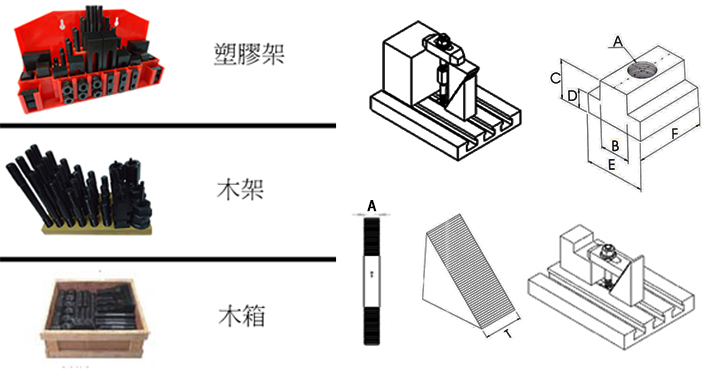

Order No. ofinch size 52-PC setAB(mm)C(mm)D(mm)E(mm)F(mm)T(mm)Packing
CK-1031P3/8"-1610.8125.517.52225Plastic frame
CK-1032P3/8"-1611.5126.8222225Plastic frame
CK-1033P3/8"-1613.815.98222825Plastic frame
CK-104A(1/2-121)P1/2"-1213.815.98222825Plastic frame
CK-104A(1/2-122)P1/2"-1215.5168252825Plastic frame
CK-104A(1/2-123)P1/2"-1217.51911283125Plastic frame
CK-104A(1/2-131)P1/2"-13UNC13.815.98222825Plastic frame
CK-104A(1/2-132)P1/2"-13UNC15.5168252825Plastic frame
CK-104A(1/2-133)P1/2"-13UNC17.51911283125Plastic frame
CK-104B(1/2-121)P1/2"-1213.815.98222832Plastic frame
CK-104B(1/2-122)P1/2"-1215.5168252832Plastic frame
CK-104B(1/2-123)P1/2"-1217.51911283132Plastic frame
CK-104B(1/2-131)P1/2"-13UNC13.815.98222832Plastic frame
CK-104B(1/2-132)P1/2"-13UNC15.5168252832Plastic frame
CK-104B(1/2-133)P1/2"-13UNC17.51911283132Plastic frame
CK-105A1P5/8"-1117.51911223125Plastic frame
CK-105A2P5/8"-1118.61911.9253125Plastic frame
CK-105A3P5/8"-1120.22514283825Plastic frame
CK-105A1W5/8"-1117.51911283125Wooden tray
CK-105A2W5/8"-1118.61911.931.83125Wooden tray
CK-105A3W5/8"-1120.22514323825Wooden tray
CK-105B1P5/8"-1117.51911283132Plastic frame
CK-105B2P5/8"-1118.61911.931.83132Plastic frame
CK-105B3P5/8"-1120.22514323832Plastic frame
CK-1061W3/4"-1020.22514323838Wooden tray
CK-1062W3/4"-1021.72814353838Wooden tray
CK-1063W3/4"-10252515.54044.538Wooden tray
CK-107C7/8"-9252515.5403850Wooden case
CK-108C1"-8273817.5404950Wooden case


Order No. of metric size 52-PC setAB(mm)C(mm)D(mm)E(mm)F(mm)T(mm)Packing
CK-8PM8X1.259.7126162025Plastic frame
CK-10PM10X1.511.5126.817.52225Plastic frame
CK-12A1PM12X1.7513.815.98222825Plastic frame
CK-12A2PM12X1.7515.5168252825Plastic frame
CK-12B1PM12X1.7513.815.98222832Plastic frame
CK-12B2PM12X1.7515.5168252832Plastic frame
CK-14APM14X2.015.5168252825Plastic frame
CK-14BPM14X2.015.5168252832Plastic frame
CK-16APM16X2.017.51911283125Plastic frame
CK-16BPM16X2.017.51911283132Plastic frame
CK-18WM18X2.519.52412323838Wooden tray
CK-20WM20X2.521.72814353838Wooden tray
CK-24CM24X3.027.53618444950Wooden case
