2WB 鎢鋼鎖牙式刀頭
產品特點
型號 : 2WB

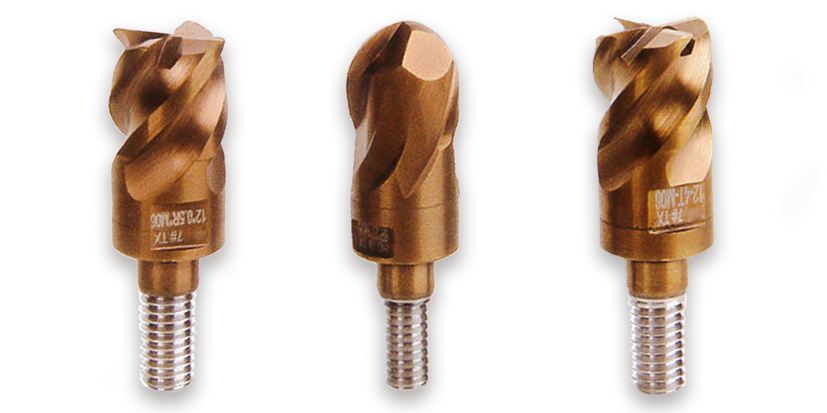

鎢鋼鎖牙式刀頭系列鎢鋼平銑刀頭
鎢鋼球型刀頭
鎢鋼圓鼻刀頭
特點:節省刀具成本,耐用,環保

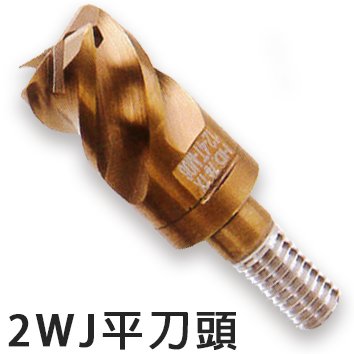

鎢鋼平銑刀頭
鎢鋼鎖牙式刀頭
鎢鋼鎖牙式刀頭
型號 | 直徑 | 刃長 | 頸徑 | 螺紋 | 牌價 | |
| 2WJ0804 | 8 | 8 | 7.7 | M04 | 1460 | |
2WJ1002 | 10 | 10 | 9.7 | M05 | 1690 | |
2WJ1202 | 12 | 12 | 11.7 | M06 | 2400 | |
2WJ1602 | 16 | 16 | 15.7 | M08 | 4090 | |
2WJ2002 | 20 | 20 | 19.5 | M10 | 5200 | |
2WJ2502 | 25 | 25 | 24.5 | M12 | 8820 |

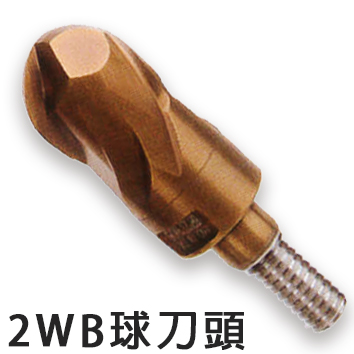

鎢鋼球型刀頭
型號 | 直徑 | 刃長 | 頸徑 | 螺紋 | 牌價 |  |
2WB1002 | R5.0 | 10 | 9.7 | M05 | 1690 | |
2WB1202 | R6.0 | 12 | 11.7 | M06 | 2400 | |
2WB1602 | R8.0 | 16 | 15.7 | M08 | 4090 | |
2WB2002 | R10.0 | 20 | 19.5 | M10 | 5200 | |
2WB2502 | R12.5 | 25 | 24.5 | M12 | 8820 |

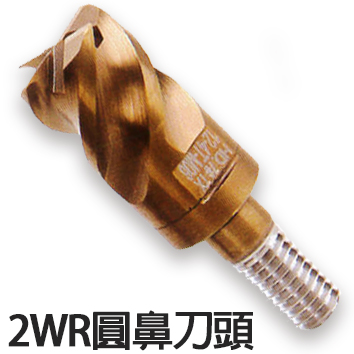

鎢鋼圓鼻刀頭
型號 | 直徑 | 刃長 | 頸徑 | 螺紋 | 牌價 |  |
2WR100R | 10*0.5R | 10 | 9.7 | M05 | 1770 | |
2WR101R | 10*1R | 10 | 9.7 | M05 | ||
2WR102R | 10*2R | 10 | 9.7 | M05 | ||
2WR120R | 12*0.5R | 12 | 11.7 | M06 | 2420 | |
2WR121R | 12*1R | 12 | 11.7 | M06 | ||
2WR122R | 12*2R | 12 | 11.7 | M06 | ||
2WR161R | 16*1R | 16 | 15.7 | M08 | 4100 | |
2WR162R | 16*2R | 16 | 15.7 | M08 | ||
2WR201R | 20*1R | 20 | 19.5 | M10 | 5320 | |
2WR202R | 20*2R | 20 | 19.5 | M10 | ||
2WR203R | 20*3R | 20 | 19.5 | M10 | ||
2WR251R | 25*1R | 25 | 24.5 | M12 | 8980 | |
2WR252R | 25*2R | 25 | 24.5 | M12 | ||
2WR253R | 25*3R | 25 | 24.5 | M12 |
