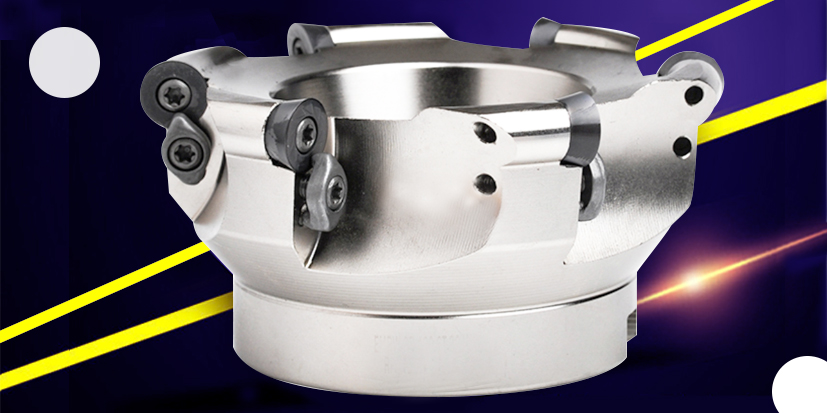

GFG2QR 捨棄式圓型銑刀盤
產品特點
型號 : GFG2QR
捨棄式圓型銑刀盤RDMT10T3
捨棄式圓型銑刀盤
捨棄式圓型銑刀盤

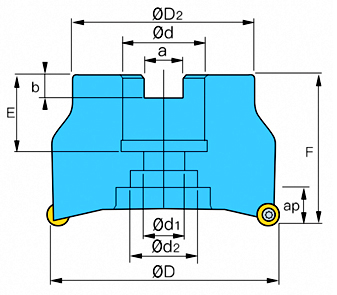

訂購編號 | 刃數 | 直徑D | 孔徑d | 高度L1 | AP | 刀片 | 螺絲 | 扳手 | 壓板 |
GFG2QRD050 | 4T | 50 | 22 | 50 | 5 | RDMT10T3 | M4-*10 小頭 | T15 | R5 |
GFG2QRD063 |
訂購編號 | 刃數 | 直徑D | 孔徑d | 高度L1 | AP | 刀片 | 螺絲 | 扳手 | 壓板 |
GFG2QRP050 | 4 | 50 | 22 | 50 | 5 | RPMW1003 | M4-*10 | T15 | R5 |
GFG2QRP063 | 4 | 63 | 22 | ||||||
GFG2QRP080 | 6 | 80 | 27 | ||||||
GFG2QRP100 | 6 | 100 | 32 | ||||||
GFG2QRP125 | 7 | 125 | 40 | 63 | |||||
GFG2QRP160 | 8 | 160 | 40 | ||||||
GFG2QRP200 | 10 | 200 | 60 |
訂購編號 | 刃數 | 直徑D | 孔徑d | 高度L1 | AP | 刀片 | 螺絲 | 扳手 | 壓板 |
GFG2QRPM050 | 4 | 50 | 22 | 50 | 6 | RPMW1204 | M4-*10 | T15 | R6 |
GFG2QRPM063 | 4 | 63 | 22 | ||||||
GFG2QRPM080 | 6 | 80 | 27 | ||||||
GFG2QRPM100 | 6 | 100 | 32 | ||||||
GFG2QRPM125 | 7 | 125 | 40 | ||||||
GFG2QRPM160 | 8 | 160 | 40 | 63 | |||||
GFG2QRPM200 | 10 | 200 | 60 |
