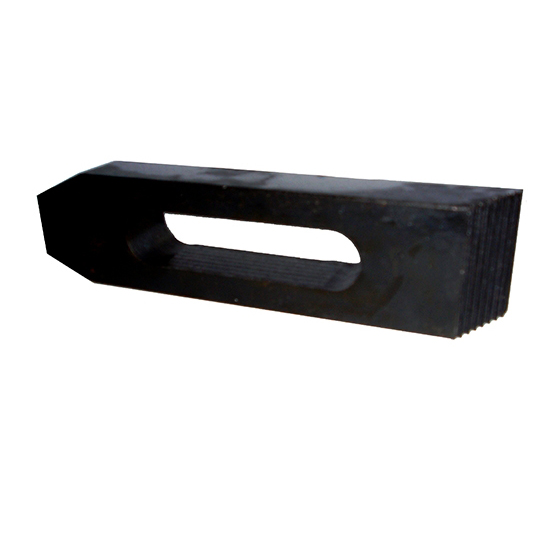

CK-SC 齒型壓板
產品特點
型號 : CK-SC

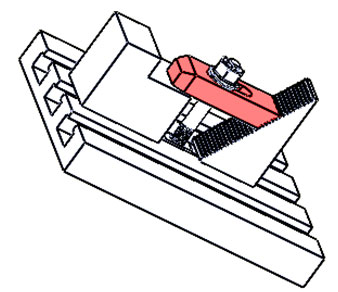

用途:可以依工件高度將壓板上鋸齒嵌入三角級枕上鋸齒適當位置使用固 定工件材質:S45C，表面染黑皮膜處理
熱處理硬度: HRC32±5°
產品規格:
3/8S 3/8M 3/8L (slot width 11mm)
1/2S 1/2M 1/2L (slot width 15mm)
5/8S 5/8M 5/8L (slot width 18mm)
3/4S 3/4M 3/4L (slot width 21mm)
1S 1M 1L (slot width 26mm)
齒型壓板
齒型壓板
用途:可以依工件高度將壓板上鋸齒嵌入三角級枕上鋸齒適當位置使用固 定工件
材質:S45C，表面染黑皮膜處理
熱處理硬度: HRC32±5°
產品規格:
3/8S 3/8M 3/8L (slot width 11mm)
1/2S 1/2M 1/2L (slot width 15mm)
5/8S 5/8M 5/8L (slot width 18mm)
3/4S 3/4M 3/4L (slot width 21mm)
1S 1M 1L (slot width 26mm)

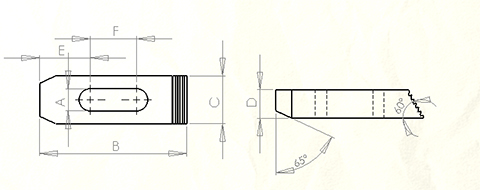

Order no. | Model | A | B | C | D | E | F | Applied stud | |
Inch | Metric | ||||||||
SC-63031 | 3/8(S) | 11 | 65 | 25.4 | 12.7 | 25.5 | 19 | 3/8 | M10 |
SC-63032 | 3/8(M) | 11 | 100 | 26 | 15 | 30.5 | 30 | ||
SC-63033 | 3/8(L) | 11 | 150 | 28.5 | 19 | 40.5 | 54 | ||
SC-64041 | 1/2(S) | 15 | 65 | 30 | 13 | 25 | 16 | 1/2 | M12-M14 |
SC-64042 | 1/2(M) | 15 | 100 | 32 | 19 | 34 | 31 | ||
SC-64043 | 1/2(L) | 15 | 150 | 32 | 22 | 47 | 55 | ||
SC-65051 | 5/8(S) | 18 | 65 | 32 | 16 | 25 | 14 | 5/8 | M16 |
SC-65052 | 5/8(M) | 18 | 100 | 38 | 19 | 33 | 30 | ||
SC-65053 | 5/8(L) | 18 | 150 | 38 | 22 | 44 | 57 | ||
SC-66061 | 3/4(S) | 21 | 100 | 38 | 19 | 33 | 30 | 3/4 | M18-20 |
SC-66062 | 3/4(M) | 21 | 150 | 38 | 25 | 48 | 50 | ||
SC-66063 | 3/4(L) | 21 | 200 | 44.5 | 28.5 | 63 | 70 | ||
SC-68081 | 1(S) | 26 | 150 | 49 | 32 | 51 | 39 | 7/8-1 | M22,M24 |
SC-68082 | 1(M) | 26 | 200 | 49 | 38 | 63 | 69 | ||
SC-68083 | 1(L) | 26 | 250 | 49 | 38 | 85 | 74 | ||
