JEVU2 鋁用鎢鋼螺紋铣牙刀
產品特點
型號 : JEVU2
適用於不鏽鋼 合金 耐熱合金加工效率高 穩定
鋁用鎢鋼螺紋铣牙刀

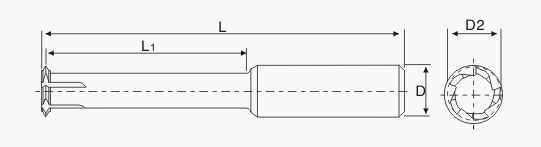

| 螺距 | M | M | 柄徑 | 刃徑 | 切削刀 | 刃長 | 總長 |
| TPI | 粗牙 | 細牙 | mm | mm | mm | mm | |
| 0.25 | M1.0*0.25 | M1.4*0.25 | 4 | 0.7 | 3 | 3.1 | 50 |
| 0.25 | M1.2*0.25 | M1.4*0.25 | 4 | 0.9 | 3 | 3.8 | 50 |
| 0.3 | M1.4*0.3 | 4 | 1.05 | 3 | 4.4 | 50 | |
| 0.35 | M1.6*0.35 | 4 | 1.2 | 3 | 5 | 50 | |
| 0.35 | M1.8*0.35 | M2.0*0.35 | 4 | 1.4 | 3 | 5.6 | 50 |
| 0.4 | M2.0*0.4 | 4 | 1.5 | 3 | 6.2 | 50 | |
| 0.45 | M2.5*0.45 | 4 | 1.95 | 3 | 7.7 | 50 | |
| 0.5 | M3.0*0.5 | 4 | 2.4 | 3 | 9 | 50 | |
| 0.6 | M3.5*0.6 | 4 | 2.75 | 3 | 10 | 50 | |
| 0.7 | M4.0*0.7 | 4 | 3.15 | 3 | 12 | 50 | |
| 0.8 | M5.0*0.8 | 4 | 4 | 3 | 15 | 50 | |
| 1 | M6.0*1.0 | 6 | 4.8 | 3 | 19 | 60 | |
| 1.25 | M8.0*1.25 | 6 | 6 | 3 | 26 | 60 | |
| 1.5 | M10*1.5 | 8 | 8 | 3 | 32 | 60 | |
| 1.5 | M12*1.5 | 10 | 9.4 | 4 | 38 | 75 | |
| 1.75 | M12*1.75 | 10 | 9.4 | 4 | 38 | 75 | |
| 2 | M14*2.0 | 12 | 10.2 | 4 | 44 | 75 | |
| 2 | M16*2.0 | 14 | 13 | 4 | 48 | 80 | |
| 2.5 | M18*2.5 | 16 | 14.5 | 4 | 60 | 90 | |
| 2.5 | M20*2.5 | 16 | 16 | 5 | 60 | 90 |
