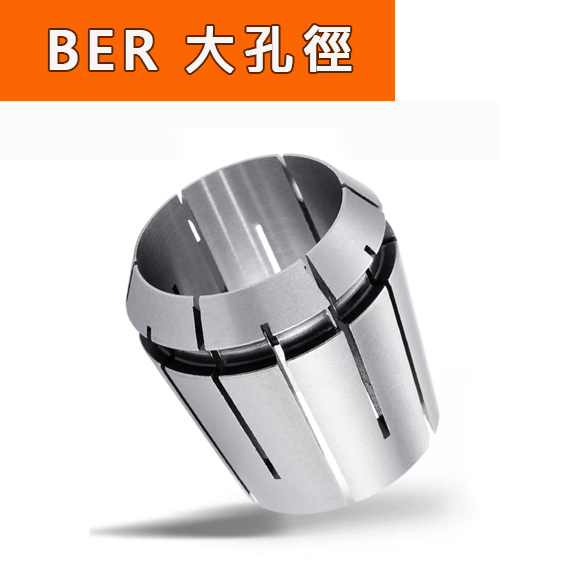

BER 大孔徑非標筒夾
產品特點
型號 : BER
適用於雕刻機設備大孔徑ER非標筒夾
大孔徑非標筒夾
大孔徑BER非標筒夾
| 型號規格 | 直徑 | 內徑 | 高度 |
| BER8-5.5 | 8 | 5.5 | 14 |
| BER8-6 | 8 | 6 | 14 |
| BER11-8 | 12 | 8 | 15.5 |
| BER16-11 | 16 | 11 | 25 |
| BER16-12 | 16 | 12 | 22 |
| BER20-14 | 21 | 14 | 28 |
| BER20-15 | 21 | 15 | 26 |
| BER20-16 | 21 | 16 | 25.6 |
| BER25-17 | 26 | 17 | 32 |
| BER25-18 | 26 | 18 | 32 |
| BER25-19 | 26 | 19 | 30 |
| BER25-20 | 26 | 20 | 28 |
| BER32-21 | 33 | 21 | 37 |
| BER32-22 | 33 | 22 | 37 |
| BER32-23 | 33 | 23 | 34.2 |
| BER32-24 | 33 | 24 | 34.1 |
| BER32-25 | 33 | 25 | 33.6 |
| BER32-26 | 33 | 26 | 34 |
| BER40-27 | 41 | 27 | 46 |
| BER40-28 | 41 | 28 | 46 |
| BER40-29 | 41 | 29 | 46 |
| BER40-30 | 41 | 30 | 46 |
| BER40-31 | 41 | 31 | 39.5 |
| BER40-32 | 41 | 32 | 39.5 |
| 精度:<0.008 (mm) | |||
