BT-SDBK 整體式減震粗鏜刀
產品特點
型號 : BT-SDBK
整體式減震粗鏜刀

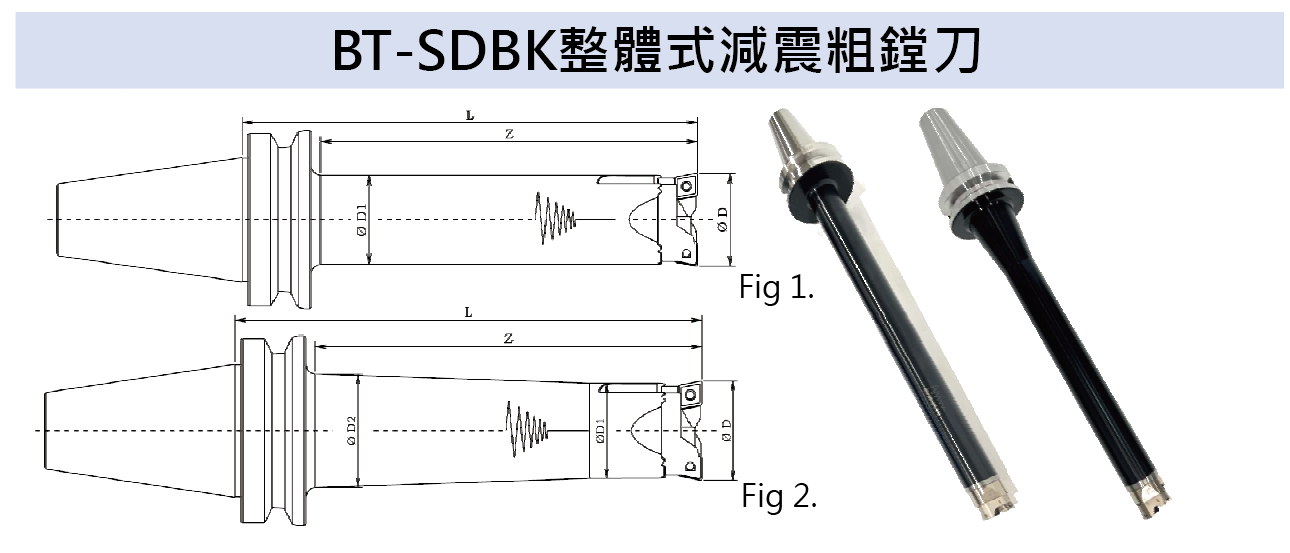

| 型號 Type | Fig | 鏜孔範圍 øD(mm) | 有效長 Z(mm) | 總深 L(mm) | 刀桿外徑(mm) | 重量 (KG) | ||
| øD2 | øD1 | |||||||
| BT40-SDBK20-170H | 1 | 20-26 | 145 | 170 | / | 19 | 1.69 | |
| BT40-SDBK20-195H BG | 2 | 170 | 195 | 1.73 | ||||
| BT40-SDBK25-215H | 1 | 25-33 | 190 | 215 | / | 24 | 2.01 | |
| BT40-SDBK25-265H BG | 2 | 240 | 265 | 2.17 | ||||
| BT40-SDBK32-270H | 1 | 32-42 | 245 | 270 | / | 31 | 2.76 | |
| BT40-SDBK32-335H BG | 2 | 310 | 335 | 3.12 | ||||
| BT40-SDBK40-335H | 1 | 40-55 | 310 | 335 | / | 39 | 4.06 | |
| BT40-SDBK40-415H BG | 2 | 390 | 415 | 4.74 | ||||
| BT40-SDBK52-425H | 1 | 52-70 | 400 | 425 | / | 50 | 7.23 | |
| BT40-SDBK52-520H BG | 2 | 495 | 520 | 8.6 | ||||
| BT40-SDBK68-500H | 1 | 68-100 | 475 | 500 | / | 64 | 12.97 | |
| BT40-SDBK68-600H BG | 2 | 575 | 600 | 15.39 | ||||
| BT50-SDBK20-185H | 1 | 20-26 | 150 | 185 | / | 19 | 4.2 | |
| BT50-SDBK20-225H BG | 2 | 190 | 225 | 4.25 | ||||
| BT50-SDBK25-225H | 1 | 25-33 | 190 | 225 | / | 24 | 4.5 | |
| BT50-SDBK25-275H BG | 2 | 240 | 275 | 4.63 | ||||
| BT50-SDBK32-280H | 1 | 32-42 | 245 | 280 | / | 31 | 5.06 | |
| BT50-SDBK32-345H BG | 2 | 310 | 345 | 5.34 | ||||
| BT50-SDBK40-345H | 1 | 40-55 | 310 | 345 | / | 39 | 6.4 | |
| BT50-SDBK40-425H BG | 2 | 390 | 425 | 7.03 | ||||
| BT50-SDBK52-435H | 1 | 52-70 | 400 | 435 | / | 50 | 9.43 | |
| BT50-SDBK52-535H BG | 2 | 500 | 535 | 10.79 | ||||
| BT50-SDBK68-540H | 1 | 68-100 | 505 | 540 | / | 64 | 15.8 | |
| BT50-SDBK68-600H BG | 2 | 565 | 600 | 17.2 | ||||
| BT50-SDBK100-600H | 1 | 92-122 | 565 | 600 | / | 70 | 20 | |
| BT50-SDBK100-700H BG | 2 | 665 | 700 | 22.83 | ||||
