FMX 減震銑刀柄
產品特點

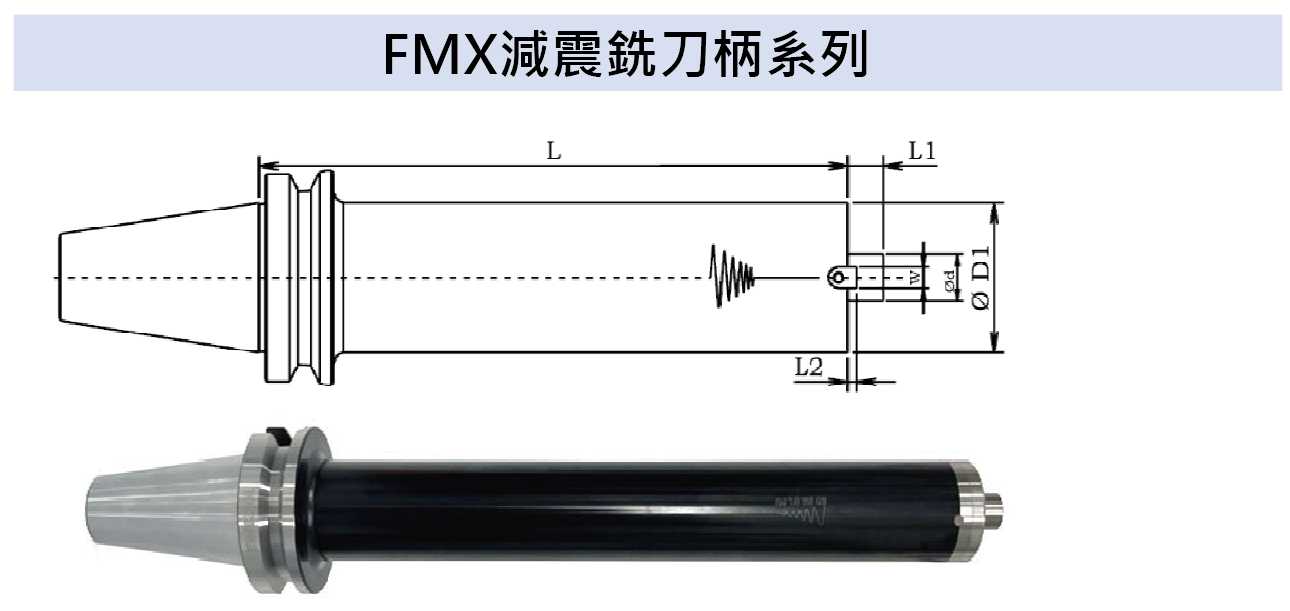

型號 : FMX
減震銑刀柄
| 型號 Type | 大端 外徑 | 小端外徑 øD1(mm) | 刀桿長 L(mm) | 心軸外徑 ød(mm) | 心軸長 L1(mm) | 鍵寬 W(mm) | 鍵高 L2(m | 重量 (KG) |
| BT50-FMX16-200H | 38 | 38 | 200 | 16 | 18 | 8 | 5 | 4.7 |
| BT50-FMX16-250H | 250 | 5.5 | ||||||
| BT50-FMX16-300H | 300 | 6.2 | ||||||
| BT50-FMX16-350H | 350 | 7.3 | ||||||
| BT50-FMX22-300H | 48 | 48 | 300 | 22 | 18 | 10 | 4.3 | 6.7 |
| BT50-FMX22-350H | 350 | 7.4 | ||||||
| BT50-FMX22-400H | 400 | 8.1 | ||||||
| BT50-FMX22-450H | 450 | 9.5 | ||||||
| BT50-FMX22-500H | 500 | 11.5 | ||||||
| BT50-FMX22-300H | 58 | 58 | 300 | 7.8 | ||||
| BT50-FMX22-350H | 350 | 8.5 | ||||||
| BT50-FMX22-400H | 400 | 9.3 | ||||||
| BT50-FMX22-450H | 450 | 11 | ||||||
| BT50-FMX22-500H | 500 | 13.5 | ||||||
| BT50-FMX27-300H | 60 | 60 | 300 | 27 | 20 | 12 | 5.8 | 8 |
| BT50-FMX27-350H | 350 | 8.9 | ||||||
| BT50-FMX27-400H | 400 | 9.5 | ||||||
| BT50-FMX27-450H | 450 | 11.8 | ||||||
| BT50-FMX27-500H | 500 | 14.1 | ||||||
| BT50-FMX27-300H | 76 | 76 | 300 | 10 | ||||
| BT50-FMX27-350H | 350 | 10.8 | ||||||
| BT50-FMX27-400H | 400 | 11.6 | ||||||
| BT50-FMX27-450H | 450 | 12.9 | ||||||
| BT50-FMX27-500H | 500 | 15.8 | ||||||
| BT50-FMX32-300H | 78 | 78 | 300 | 32 | 21 | 14 | 6.8 | 10.2 |
| BT50-FMX32-350H | 350 | 11 | ||||||
| BT50-FMX32-400H | 400 | 11.5 | ||||||
| BT50-FMX32-450H | 450 | 13.4 | ||||||
| BT50-FMX32-500H | 500 | 16.2 | ||||||
| BT50-FMX32-600H BG | 85 | 78 | 600 | 16.8 |
