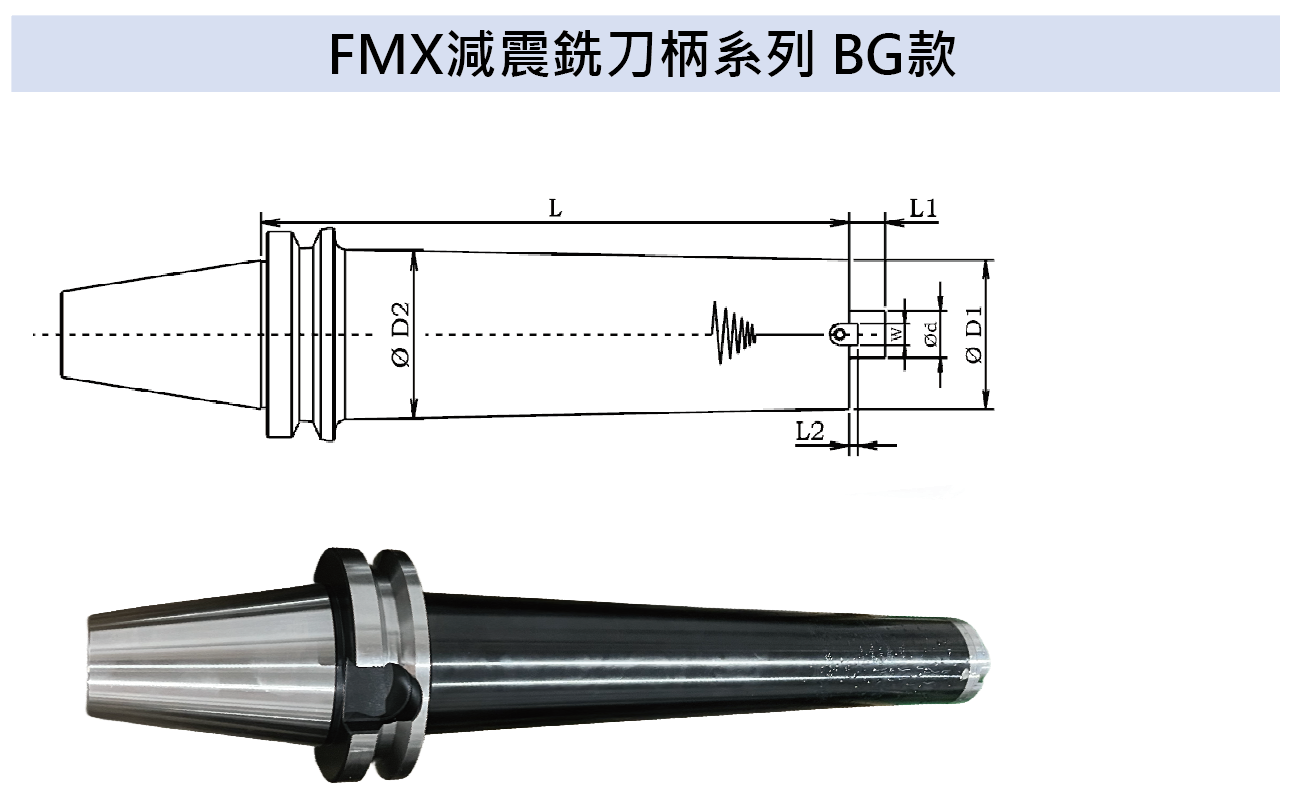

型號 : FMX
型號 Type | 大端 外徑 | 小端外徑 øD1(mm) | 刀桿長 L(mm) | 心軸外徑 ød(mm) | 心軸长 L1(mm) | 鍵寬 W(mm) | 鍵高 L2(m | 重量 (KG) |
BT50-FMX22-300H BG | 60 | 50 | 300 | 22 | 18 | 10 | 4.3 | 7.9 |
BT50-FMX22-350H BG | 350 | 8.85 | ||||||
BT50-FMX22-400H BG | 400 | 9.45 | ||||||
BT50-FMX22-450H BG | 450 | 11.6 | ||||||
BT50-FMX22-500H BG | 500 | 13.8 | ||||||
BT50-FMX27-300H BG | 78 | 60 | 300 | 27 | 20 | 12 | 5.8 | 8.5 |
BT50-FMX27-350H BG | 350 | 9.3 | ||||||
BT50-FMX27-400H BG | 400 | 9.8 | ||||||
BT50-FMX27-450H BG | 450 | 13.1 | ||||||
BT50-FMX27-500H BG | 500 | 16.2 | ||||||
BT50-FMX27-300H BG | 85 | 78 | 300 | 8.7 | ||||
BT50-FMX27-350H BG | 350 | 9.5 | ||||||
BT50-FMX27-400H BG | 400 | 10.4 | ||||||
BT50-FMX27-450H BG | 450 | 13.3 | ||||||
BT50-FMX27-500H BG | 500 | 14.6 | ||||||
BT50-FMX32-300H BG | 86 | 78 | 300 | 32 | 21 | 14 | 6.8 | 10.6 |
BT50-FMX32-350H BG | 350 | 11.4 | ||||||
BT50-FMX32-400H BG | 400 | 12 | ||||||
BT50-FMX32-450H BG | 450 | 13.8 | ||||||
BT50-FMX32-500H BG | 500 | 16.5 | ||||||
BT50-FMX32-600H BG | 600 | 17 |
