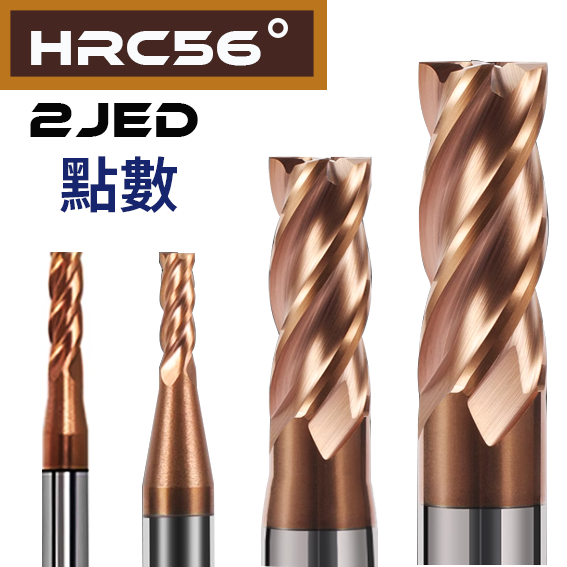

2JED 鎢鋼小數點銑刀
產品特點
型號 : 2JED
2JED 重切削鎢鋼銑刀 4刃HRC56以下
0.6u , Co12%
納米多層覆膜NACO4
鎢鋼小數點銑刀
2JED鎢鋼小數點銑刀

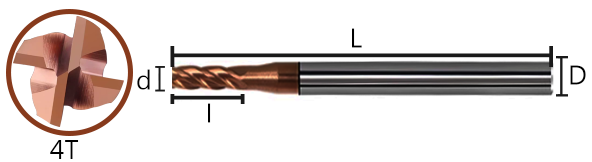

d刃徑*I刃長*D柄徑*L總長
| 2JED 規格 | 牌價 | 2JED 規格 | 牌價 | 2JED 規格 | 牌價 | ||
| 1.1*3.3*D4*50L | 410 | 5.1*15*D6*50L*4F | 440 | 8.7*26*D10*75L*4F | 960 | ||
| 1.2*3.6*D4*50L | 5.2*15*D6*50L*4F | 8.8*26*D10*75L*4F | |||||
| 1.3*3.9*D4*50L | 5.3*15*D6*50L*4F | 8.9*26*D10*75L*4F | |||||
| 1.4*4.2*D4*50L | 5.4*16*D6*50L*4F | 9.1*27*D10*75L*4F | |||||
| 1.6*4.8*D4*50L | 5.5*16*D6*50L*4F | 9.2*27*D10*75L*4F | |||||
| 1.7*5.1*D4*50L | 5.6*16*D6*50L*4F | 9.3*27*D10*75L*4F | |||||
| 1.8*5.4*D4*50L | 5.7*16*D6*50L*4F | 9.4*27*D10*75L*4F | |||||
| 1.9*5.7*D4*50L | 5.8*17*D6*50L*4F | 9.5*28*D10*75L*4F | |||||
| 2.1*6.3*D4*50L | 5.9*17*D6*50L*4F | 9.6*28*D10*75L*4F | |||||
| 2.2**6.6*D4*50L | 6.1*18*D8*60L*4F | 580 | 9.7*28*D10*75L*4F | ||||
| 2.3*6.9*D4*50L | 6.2*18*D8*60L*4F | 9.8*29*D10*75L*4F | |||||
| 2.4*7.2*D4*50L | 6.3*18*D8*60L*4F | 9.9*29*D10*75L*4F | |||||
| 2.6*7.8*D4*50L | 6.4*19*D8*60L*4F | 10.1*30*D12*75L*4F | 1150 | ||||
| 2.7*8.1*D4*50L | 6.5*19*D8*60L*4F | 10.2*30*D12*75L*4F | |||||
| 2.8*8.4*D4*50L | 6.6*19*D8*60L*4F | 10.3*30*D12*75L*4F | |||||
| 2.9*8.7*D4*50L | 6.7*20*D8*60L*4F | 10.4*30*D12*75L*4F | |||||
| 3.1*9.3*D4*50L | 6.8*20*D8*60L*4F | 10.5*31*D12*75L*4F | |||||
| 3.2*9.6*D4*50L | 6.9*20*D8*60L*4F | 10.6*31*D12*75L*4F | |||||
| 3.3*9.9*D4*50L | 7.1*21*D8*60L*4F | 10.7*31*D12*75L*4F | |||||
| 3.4*10*D4*50L | 7.2*21*D8*60L*4F | 10.8*31*D12*75L*4F | |||||
| 3.6*10*D4*50L | 7.3*21*D8*60L*4F | 10.9*32*D12*75L*4F | |||||
| 3.7*10*D4*50L | 7.4*22*D8*60L*4F | 11.1*32*D12*75L*4F | |||||
| 3.8*10*D4*50L | 7.5*22*D8*60L*4F | 11.2*32*D12*75L*4F | |||||
| 3.9*12*D4*50L | 7.6*22*D8*60L*4F | 11.3*32*D12*75L*4F | |||||
| 4.1*12*D6*50L | 440 | 7.7*23*D8*60L*4F | 11.4*32*D12*75L*4F | ||||
| 4.2*12*D6*50L | 7.8*23*D8*60L*4F | 11.5*33*D12*75L*4F | |||||
| 4.3*12*D6*50L | 7.9*23*D8*60L*4F | 11.6*33*D12*75L*4F | |||||
| 4.4*13*D6*50L | 8.1*24*D10*75L*4F | 960 | 11.7*33*D12*75L*4F | ||||
| 4.5*13*D6*50L | 8.2*24*D10*75L*4F | 11.8*33*D12*75L*4F | |||||
| 4.6*13*D6*50L | 8.3*24*D10*75L*4F | 11.9*33*D12*75L*4F | |||||
| 4.7*14*D6*50L | 8.4*25*D10*75L*4F | 12.5*40*D14*100L*4F | 2500 | ||||
| 4.8*14*D6*50L | 8.5*25*D10*75L*4F | 13.5*40*D14*100L*4F | |||||
| 4.9*14*D6*50L | 8.6*25*D10*75L*4F | 14.5*45*D16*100L*4F | 3400 |
