型號 : 莫式錐度號
滾光刀柄

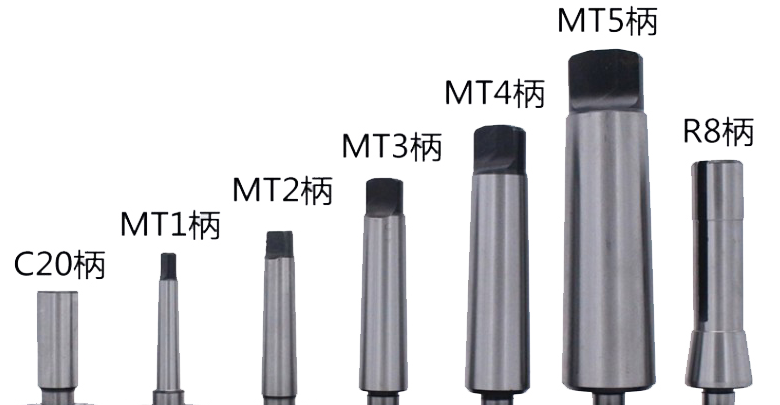

MT2 MT3 MT4
莫式錐度表
莫式錐度號 | 錐度 | A | B(MAX) | C(MAX) | D(MAX) | E(MAX) | F | G | H | J | 半斜角(α/2) |
0 | 1:19.212 | 9.045 | 56.5 | 59.5 | 10.5 | 6 | 4 | 1 | 3 | 3.9 | 1° 29’27” |
1 | 1:20.047 | 12.065 | 62 | 65.5 | 13.5 | 8.7 | 5 | 1.2 | 3.5 | 5.2 | 1° 25’43” |
2 | 1:20.020 | 17.780 | 75 | 80 | 16 | 13.5 | 6 | 1.6 | 5 | 6.3 | 1° 25’50” |
3 | 1:19.922 | 23.825 | 94 | 99 | 20 | 18.5 | 7 | 2 | 5 | 7.9 | 1° 26’16” |
4 | 1:19.254 | 31.267 | 117.5 | 124 | 24 | 24.5 | 8 | 2.5 | 6.5 | 11.9 | 1° 29’15” |
5 | 1:19.002 | 44.399 | 149.5 | 156 | 29 | 35.7 | 10 | 3 | 6.5 | 15.9 | 1° 30’26” |
6 | 1:19.180 | 63.348 | 210 | 218 | 40 | 51 | 13 | 4 | 8 | 19 | 1° 29’36” |
7 | 1:19.231 | 83.058 | 285.75 | 294.1 | 34.9 | 19.05 | 19 | 1° 29’22” |
