SRAC SRAC圓弧車刀架
產品特點
型號 : SRAC

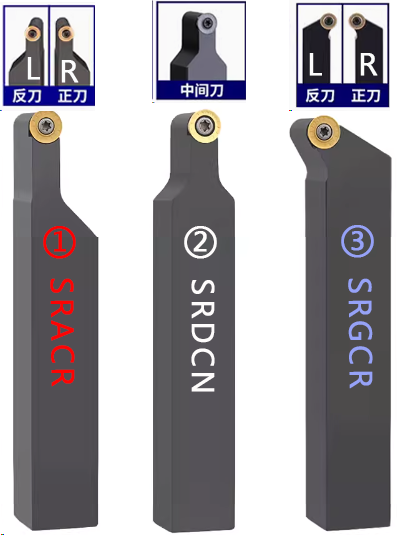

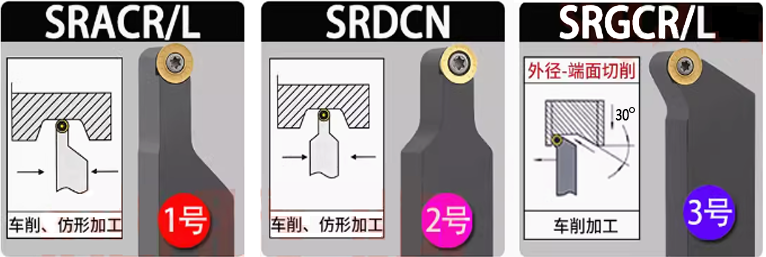

圓弧車刀架SRAC圓弧車刀架
圓弧車刀架R2.5/R3/R4/R5/R6/R8/R10車刀桿/刀架/刀柄外圓車削加長/球形
| |||
| 尺寸 | 牌價 | 尺寸 | 牌價 |
| ①R2.5-SRACR1616H05*切深14 | ②R3-SRDCN1212H06*切深14 | ||
| ①R2.5-SRACR2020K05*切深14 | ②R3-SRDCN1616H06*切深14 | ||
| ①R2.5-SRACR2525M05*切深14 | ②R3-SRDCN2020K06*切深14 | ||
| ①R3-SRACR1010H06*切深10 | ②R3-SRDCN2525M06*切深14 | ||
| ①R3-SRACR1212H06*切深14 | ②R4-SRDPN1212H08*切深16 | ||
| ①R3-SRACR1616H06*切深14 | ②R4-SRDPN1616H08*切深18 | ||
| ①R3-SRACR2020K06*切深14 | ②R4-SRDPN2020K08*切深18 | ||
| ①R3-SRACR2020K06*T20彈簧鋼 | ②R4-SRDPN2525M08*切深18 | ||
| ①R3-SRACR2525M06*切深14 | ②R4-SRDCN3232P08*切深18 | ||
| ①R3-SRACR2525M06*T20彈簧鋼 | ②R5-SRDPN1010H10*切深18 | ||
| ①R3-SRACR2020K06*切深40 | ②R5-SRDPN1212H10*切深18 | ||
| ①R3-SRACR2525M06*切深40 | ②R5-SRDPN1616H10*切深21 | ||
| ①R4-SRAPR1616H08*切深16 | ②R5-SRDPN2020K10*切深21 | ||
| ①R4-SRAPR2020K08*切深16 | ②R5-SRDPN2525M10*切深23 | ||
| ①R4-SRACR2020K08*T20彈簧鋼 | ②R5-SRDPN2525M10*切深40 | ||
| ①R4-SRACR2525M08*切深18 | ②R5-SRDPN2525M10*切深50 | ||
| ①R4-SRACR2020K08*切深40 | ②R5-SRDCN3232P10*切深25 | ||
| ①R4-SRACR2525M08*切深40 | ②R5-SRDCN4040R10*切深25 | ||
| ①R4-SRACR2525M08*T25彈簧鋼 | ②R6-SRDCN1616H12*切深25 | ||
| ①R4-SRACR3232P08*切深18 | ②R6-SRDPN2020K12*切深25 | ||
| ①R4-SRACR3232P08*T25彈簧鋼 | ②R6-SRDPN2525M12*切深25 | ||
| ①R4-SRACR4040R08*切深20 | ②R6-SRDPN2525M12*切深40 | ||
| ①R5-SRAPR1616H10*切深20 | ②R6-SRDPN2525M12*切深50 | ||
| ①R5-SRAPR2020K10*切深20 | ②R6-SRDCN3232P12*切深25 | ||
| ①R5-SRAPR2020K10*T20彈簧鋼 | ②R6-SRDCN4040R12*切深28 | ||
| ①R5-SRAPR2525M10*切深22 | ②R8-SRDCN2525M16*切深26 | ||
| ①R5-SRACR2525M10*切深40 | ②R8-SRDCN3232P16*切深33 | ||
| ①R5-SRAPR2525M10*T25彈簧鋼 | ②R8-SRDCN4040R16*切深35 | ||
| ①R5-SRACR3232P10*切深22 | ②R10-SRDCN2525M20*切深26 | ||
| ①R5-SRAPR3232P10*T25彈簧鋼 | ②R10-SRDCN3232P20*切深33 | ||
| ①R5-SRAPR3232P10*切深40 | ②R10-SRDCN4040R20*切深35 | ||
| ①R5-SRAPR3232P10*切深50 | 尺寸 | 牌價 | |
| ①R5-SRAPR3232P10*切深55 | ③R3-SRGCR1212H06 | ||
| ①R5-SRACR4040R10*切深25 | ③R3-SRGCR1616H06 | ||
| ①R6-SRAPR1616H12*切深22 | ③R3-SRGCR2020K06 | ||
| ①R6-SRAPR2020K12*切深25 | ③R3-SRGCR2525M06 | ||
| ①R6-SRAPR2020K12*T20彈簧鋼 | ③R4-SRGCR1616H08 | ||
| ①R6-SRAPR2525M12*切深25 | ③R4-SRGCR2020K08 | ||
| ①R6-SRAPR2525M12*T25彈簧鋼 | ③R4-SRGCR2525M08 | ||
| ①R6-SRACR2525M12*切深40 | ③R4-SRGCR3232P08 | ||
| ①R6-SRAPR3232P12*切深25 | ③R5-SRGCR1616H10 | ||
| ①R6-SRAPR3232P12*T25彈簧鋼 | ③R5-SRGPR2020K10 | ||
| ①R6-SRACR3232P12*切深40 | ③R5-SRGPR2525M10 | ||
| ①R6-SRACR3232P12*切深50 | ③R5-SRGCR3232P10 | ||
| ①R6-SRACR4040R12*切深26 | ③R6-SRGPR2020K12 | ||
| ①R8-SRACR2020K16*切深28 | ③R6-SRGPR2525M12 | ||
| ①R8-SRACR2525M16*切深28 | ③R6-SRGCR3232P12 | ||
| ①R8-SRACR3232P16*切深28 | ③R8-SRGCR2525M16 | ||
| ①R8-SRACR3232P16*T40彈簧鋼 | ③R8-SRGCR3232P16 | ||
| ①R8-SRACR4040R16*切深35 | ③R10-SRGCR2525M20 | ||
| ①R10-SRACR2525M20*切深28 | ③R10-SRGCR3232P20 | ||
| ①R10-SRACR3232P20*切深28 | |||
| ①R10-SRACR3232P20*T40彈簧鋼 | |||
| ①R10-SRACR4040R20*切深35 | |||
