產品特點

型號 : MTR

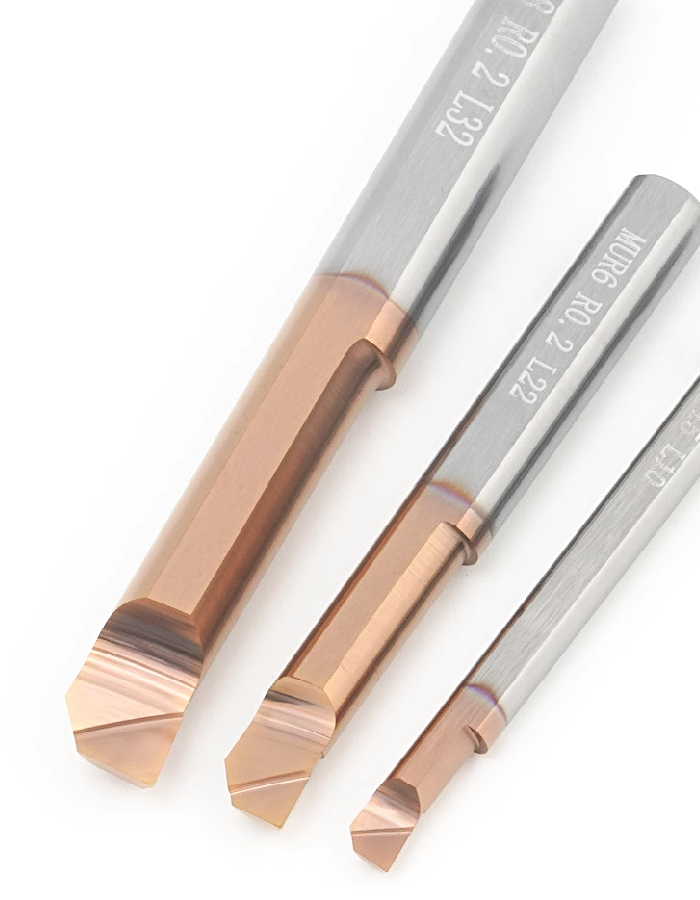

品名：塗層鎢鋼鏜刀
型號：MTR
功能：鏜孔加工
HRC：55˚
材質：超細微粒鎢鋼合金
適合材質：不銹鋼、球墨鑄鐵、模具鋼、合金鋼、調製鋼等
適合機器：CNC加工中心、雕刻機、CNC工具機、高速機、精雕機等

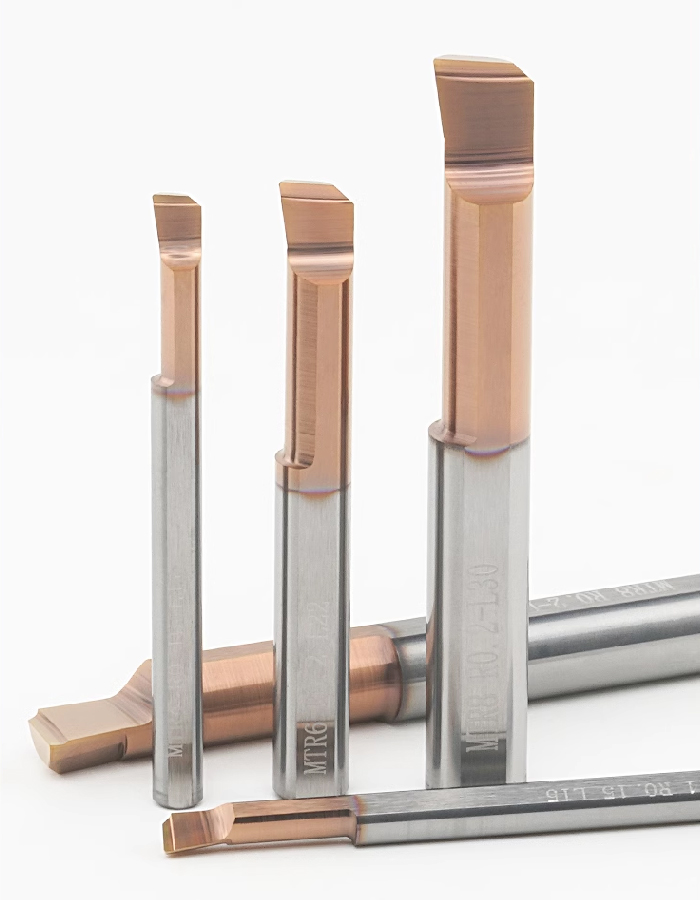

小孔徑精密鏜刀

產品規格

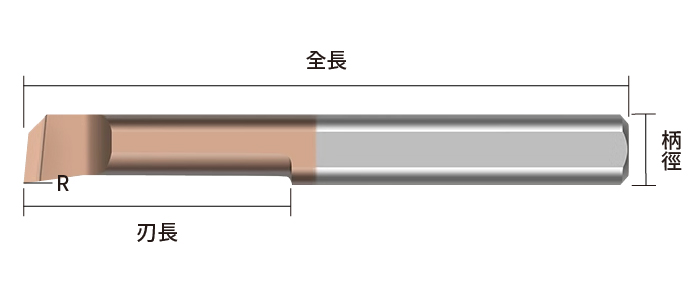

規格	總長	刃長	R角	最小孔徑	牌價
MTR 0.9 RO.05 L3-D3	50	3	0.05	1
MTR 1.0 RO.05 L3-D3	50	3	0.05	1.1
MTR 1.0 RO.05 L4-D3	50	4	0.05	1.1
MTR 1.2 R0.05 L5-D3	50	5	0.05	1.3
MTR 1.4 R0.05 L5-D3	50	5	0.05	1.5
MTR 1.5 R0.05 L6-D3	50	6	0.05	1.6
MTR 1.5 RO.1 L6-D3	50	6	0.1	1.6
MTR 1.5 RO.1 L10-D3	50	10	0.1	1.6
MTR 1.6 RO.05 L6-D3	50	5	0.05	1.7
MTR 1.8 RO.1 L7-D3	50	7	0.1	1.9
MTR 2 R0.1 L6-D3	50	5	0.1	2.1
MTR 2 R0.05 L10-D3	50	10	0.05	2.1
MTR 2 R0.05 L6-D3	50	5	0.05	2.1
MTR 2 RO.1 L10-D3	50	10	0.1	2.1
MTR 2 R0.15 L10-D3	50	10	0.15	2.1
MTR 2 R0.1 L15-D3	50	15	0.1	2.1
MTR 2 R0.15 L15-D3	50	15	0.15	2.1
MTR 2 R0.2 L15-D3	50	15	0.2	2.1
MTR 2.5 R0.05 L10-D3	50	10	0.05	2.6
MTR 2.5 R0.05 L6-D3	50	6	0.05	2.6
MTR 2.5 RO.1 L10-D3	50	10	0.1	2.6
MTR 2.5 R0.15 L10-D3	50	10	0.15	2.6
MTR 2.5 RO.15 L15-D3	50	15	0.15	2.6
MTR 2.5 RO.1 L15-D3	50	15	0.1	2.6
MTR 2.5 R0.05 L15-D3	50	15	0.05	2.6
MTR 3 RO.1 L10	50	10	0.1	3.1
MTR 3 R0.05 L10	50	10	0.05	3.1
MTR 3 RO.15 L10	50	10	0.15	3.1
MTR 3 RO.2 L10	50	10	0.2	3.1
MTR 3 RO.1 L15	50	15	0.1	3.1
MTR 3 R0.15 L15	50	15	0.15	3.1
MTR 3 RO.2 L15	50	15	0.2	3.1

規格	總長	刃長	R角	最小孔徑	牌價
MTR 0.9 R0.05 L3-D4	50	3	0.05	1
MTR 1.0 RO.05 L3-D4	50	3	0.05	1.1
MTR 1.2 R0.05 L5-D4	50	5	0.05	1.3
MTR 1.4 RO.05 L5-D4	50	5	0.05	1.5
MTR 1.5 R0.05 L6-D4	50	6	0.05	1.6
MTR 1.5 RO.1 L6-D4	50	6	0.1	1.6
MTR 1.5 RO.1 L10-D4	50	10	0.1	1.6
MTR 1.6 RO.05 L6-D4	50	6	0.05	1.7
MTR 1.8 RO.1 L7-D4	50	6	0.1	1.9
MTR 2 RO.1 L6-D4	50	10	0.1	2.1
MTR 2 R0.05 L10-D4	50	10	0.05	2.1
MTR 2 RO.1 L10-D4	50	10	0.1	2.1
MTR 2 R0.15 L10-D4	50	15	0.15	2.1
MTR 2 R0.1 L15-D4	50	15	0.1	2.1
MTR 2 R0.05 L15-D4	50	15	0.05	2.1
MTR 2 R0.15 L15-D4	50	10	0.15	2.1
MTR 2.5 R0.05 L10-D4	50	7	0.05	2.6
MTR 2.5 RO.1 L10-D4	50	10	0.1	2.6
MTR 2.5 RO.1 L15-D4	50	15	0.1	2.6
MTR 2.5 R0.05 L15-D4	50	15	0.05	2.6
MTR 2.5 R0.15 L15-D4	50	15	0.15	2.6
MTR 3 R0.05 L10-D4	50	10	0.05	3.1
MTR 3 RO.1 L10-D4	50	10	0.1	3.1
MTR 3 RO.2 L10-D4	50	10	0.2	3.1
MTR 3 R0.05 L15-D4	50	15	0.05	3.1
MTR 3 RO.1 L15-D4	50	15	0.1	3.1
MTR 3 R0.15 L15-D4	50	15	0.15	3.1
MTR 3 RO.2 L15-D4	50	15	0.2	3.1
MTR 3 R0.1 L22-D4	50	22	0.1	3.1
MTR 3 RO.2 L22-D4	50	22	0.2	3.1
MTR 3.5 R0.05 L10-D4	50	10	0.05	3.6
MTR 3.5 R0.05 L15-D4	50	15	0.05	3.6
MTR 3.5 RO.1 L10-D4	50	10	0.1	3.6
MTR 3.5 RO.1 L15-D4	50	15	0.1	3.6
MTR 3.5 RO.1 L22-D4	50	22	0.1	3.6
MTR 3.5 R0.15 L15-D4	50	15	0.15	3.6
MTR 3.5 RO.2 L10-D4	50	10	0.2	3.6
MTR 3.5 RO.2 L15-D4	50	15	0.2	3.6
MTR 3.5 RO.2 L22-D4	50	22	0.2	3.6

規格	總長	刃長	R角	最小孔徑	牌價
MTR 4 R0.05 L10	50	10	0.05	4.1
MTR 4 R0.05 L15	50	15	0.05	4.1
MTR 4 RO.1 L10	50	10	0.1	4.1
MTR 4 R0.1 L15	50	15	0.1	4.1
MTR 4 R0.15 L10	50	10	0.15	4.1
MTR 4 RO.2 L10	50	10	0.2	4.1
MTR 4 R0.1 L15	50	15	0.1	4.1
MTR 4 R0.15 L15	50	15	0.15	4.1
MTR 4 R0.15 L22	50	22	0.15	4.1
MTR 4 R0.2 L15	50	15	0.2	4.1
MTR 4 R0.1 L22	50	22	0.1	4.1
MTR 4 R0.2 L22	50	22	0.2	4.1
MTR 4.5 RO.2 L15-D5	50	15	0.2	4.6
MTR 4.5 RO.2 L22-D5	50	22	0.2	4.6
MTR 5 R0.1 L15	50	15	0.1	5.1
MTR 5 R0.2 L15	50	15	0.2	5.1
MTR 5 R0.15 L20	50	20	0.15	5.1
MTR 5 R0.15 L22	50	22	0.15	5.1
MTR 5 R0.1 L22	50	22	0.1	5.1
MTR 5 R0.2 L22	50	22	0.2	5.1
MTR 5 R0.2 L25	50	25	0.2	5.1
MTR 5 RO.2 L30	50	30	0.2	5.1
MTR 4.5 RO.2 L15-D6	50	15	0.2	4.6
MTR 4.5 RO.2 L22-D6	50	22	0.2	4.6
MTR 5.5 RO.2 L15-D6	50	15	0.2	5.6
MTR 5.5 RO.2 L22-D6	50	22	0.2	5.6
MTR 5 R0.1 L15-D6	50	15	0.1	5.1
MTR 5 R0.15 L20-D6	50	20	0.15	5.1
MTR 5 RO.2 L15-D6	50	15	0.2	5.1
MTR 5 R0.1 L22-D6	50	22	0.1	5.1
MTR 5 R0.2 L22-D6	50	22	0.2	5.1
MTR 5 R0.2 L25-D6	50	25	0.2	5.1
MTR 5 RO.2 L30-D6	50	30	0.2	5.1

規格	總長	刃長	R角	最小孔徑	牌價
MTR 6 R0.1 L15	50	15	0.1	6.1
MTR 6 RO.2 L15	50	15	0.2	6.1
MTR 6 R0.1 L22	50	22	0.1	6.1
MTR 6 R0.2 L22	50	22	0.2	6.1
MTR 6 R0.15 L22	50	22	0.15	6.1
MTR 6 RO.1 L30	50	30	0.1	6.1
MTR 6 RO.2 L30	50	30	0.2	6.1
MTR 7 R0.2 L22	60	22	0.2	7.1
MTR 7 RO.2 L30	60	30	0.2	7.1
MTR 8 R0.1 L22	60	22	0.1	8.1
MTR 8 RO.1 L30	60	30	0.1	8.1
MTR 8 R0.2 L15	60	15	0.2	8.1
MTR 8 RO.2 L22	60	22	0.2	8.1
MTR 8 RO.2 L30	60	30	0.2	8.1

---

產品介紹

優質鎢鋼合金

採用微顆粒鎢鋼母材具有較高的耐磨性與強度

減少換刀次數提高工具機處理率

刃部塗層覆蓋

刀部採用進口奈米塗層，性能穩定耐熱耐氧化切削

快速方便，降低磨損

高速鋒利切削

全磨製刃口耐磨耐用為鏜刀長久切削加工做出強力保證

確保鏜刀不會出現崩刃現象
