4. SCLP 內徑車刀

SCLP 內徑車刀

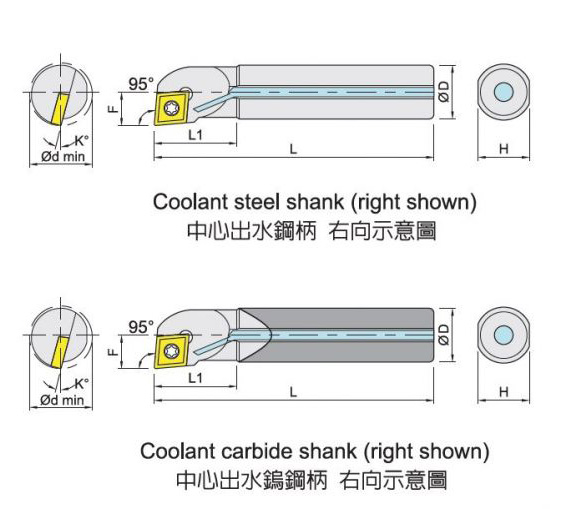

產品特點

型號 : SCLP

內徑車刀

產品規格

Steel shank Item code		Dimensions,mm							Insert	Spare parts	Weight (KG)
無水孔Non-coolant	水孔Coolant	D	L	L1	F	H	K°	dmin
S08K-SCLPR/L-06	A08K-SCLPR/L-06	8	125	20	5	7	10	10	CP..0602..	①	0.07
S10K-SCLPR/L-06	A10K-SCLPR/L-06	10	125	22	6	9	8	12			0.09
S12M-SCLPR/L-06	- -	12	150	26	8	11	7	16			0.13
S10K-SCLPR/L-08	A10K-SCLPR/L-08	10	125	22	6	9	8	12	CP..0802..	②	0.09
S12M-SCLPR/L-08	A12M-SCLPR/L-08	12	150	26	8	11	7	16		③	0.13
S12M-SCLPR/L-08-D13	A12M-SCLPR/L-08-D13	12	150	26	6.5	11	7	13			0.13
S12M-SCLPR/L-09	A12M-SCLPR/L-09	12	150	26	8	11	7	16	CP..0903..	④	0.13
S16Q-SCLPR/L-09	A16Q-SCLPR/L-09	16	180	32	10	15	7	20			0.28
S16Q-SCLPR-09-D18	A16Q-SCLPR-09-D18	16	180	32	9	15	7	18			0.28
S20R-SCLPR/L-09	A20R-SCLPR/L-09	20	200	40	13	18	4	25		⑤	0.49
S25R-SCLPR/L-09	A25R-SCLPR/L-09	25	200	40	15	23	0	30			0.77

Carbide shank Item code		Dimensions,mm							Insert	Spare parts	Weight (KG)
無水孔Non-coolant	水孔Coolant	D	L	L1	F	H	K°	dmin
C10K-SCLPR-08		10	125	22	6	9.2	8	12	CP..0802..	②	0.14
C10M-SCLPR/L-08		10	150	22	6	9.2	8	12			0.17
C12M-SCLPR-08		12	150	26	8	11.2	7	16		③	0.24
C12M-SCLPR-09	E12M-SCLPR-09	12	150	26	8	11.2	7	16	CP..0903..	④	0.24
C12Q-SCLPR-09	E12Q-SCLPR-09	12	180	26	8	11.2	7	16			0.29
C16R-SCLPR/L-09	E16R-SCLPR/L-09	16	200	32	10	15.2	7	20			0.58
C16R-SCLPR-09-D18	E16R-SCLPR-09-D18	16	200	32	9	15.2	7	18			0.58
C20R-SCLPR-09	E20R-SCLPR-09	20	200	40	13	19.2	4	25		⑤	0.91
C25S-SCLPR/L-09		25	250	40	15	24.2	0	30			1.77

Insert	Spare parts	Screw	Wrench
CP..0602..	①	MS2506A	ETF09
CP..0802..	②	MS3006A	ETF09
CP..0802..	③	MS3008A	ETF09
CP..0903..	④	MS4008B	ETF15
CP..0903..	⑤	MS4009B	ETF15
