SCKC/P 內徑車刀

產品特點

型號 : SCKC/P

內徑車刀

產品規格

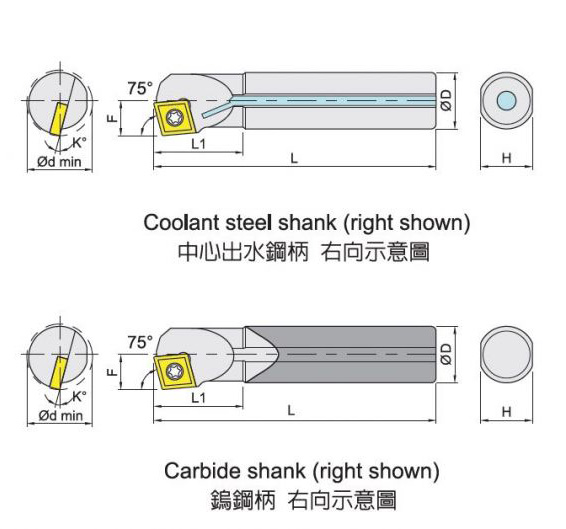

Steel shank Item code		Dimensions,mm							Insert	Spare parts	Weight (KG)
無水孔Non-coolant	水孔Coolant	D	L	L1	F	H	K°	dmin
S08K-SCKCR/L-06	A08K-SCKCR/L-06	8	125	20	5	7	15	10	CC..0602..	①	0.07
S10K-SCKCR/L-06	A10K-SCKCR/L-06	10	125	22	6	9	13	12			0.09
S12M-SCKCR/L-06	A12M-SCKCR/L-06	12	150	26	8	11	10	16			0.13
S16Q-SCKCR/L-06	A16Q-SCKCR/L-06	16	180	32	10	15	7	20			0.28
S12M-SCKCR/L-09	A12M-SCKCR/L-09	12	150	28	8	11	11	16	CC..09T3..	②	0.13
S16Q-SCKCR/L-09	A16Q-SCKCR/L-09	16	180	32	10	15	7	20			0.28
S20R-SCKCR/L-09	A20R-SCKCR/L-09	20	200	40	12.5	18	5	25		③	0.49
S16Q-SCKPR/L-09	A16Q-SCKPR/L-09	16	180	32	10	15	7	20	CP..0903..	④	0.28

Carbide shank Item code		Dimensions,mm							Insert	Spare parts	Weight (KG)
無水孔Non-coolant	水孔Coolant	D	L	L1	F	H	K°	dmin
C08K-SCKCR-06		8	125	20	5	7.2	15	10	CC..0602..	①	0.09
C12K-SCKCR-06		12	180	26	8	11.2	10	16			0.29

Insert	Spare parts	Screw	Wrench
CC..0602..	①	MS2506A	ETF09
CC..09T3..	②	MS4008A	ETF15
CC..09T3..	③	MS4009A	ETF15
CP..0903..	④	MS4008B	ETF15
