SCZC 內徑車刀

產品特點

型號 : SCZC

內徑車刀

產品規格

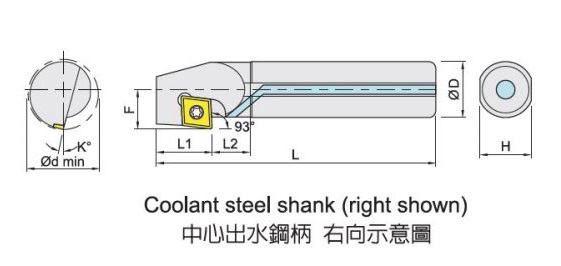

Steel shank Item code		Dimensions,mm								Insert	Spare parts	Weight (KG)
無水孔Non-coolant	水孔Coolant	D	L	L1	L2	F	H	K°	dmin
S08K-SCZCR/L-06	A08K-SCZCR/L-06	8	125	12	18	6	7	15	11	CC..0602..	①	0.07
S10K-SCZCR/L-06	A10K-SCZCR/L-06	10	125	12	18	7.5	9	13	14			0.09
S12M-SCZCR/L-06	A12M-SCZCR/L-06	12	150	12	20	8.5	11	10	16			0.13
S16Q-SCZCR/L-09	A16Q-SCZCR/L-09	16	180	18	22	11.5	15	7	21	CC..09T3..	②	0.28
S20R-SCZCR/L-09	A20R-SCZCR/L-09	20	200	18	22	13.5	18	7	25			0.49
S25R-SCZCR/L-09	A25R-SCZCR/L-09	25	200	18	22	16	23	7	30		③	0.77
S40T-SCZCR-12		40	300	22	38	25.5	37	3	50	CC..1204..	④	2.96

Insert	Spare parts	Screw	Wrench
CC..0602..	①	MS2506A	ETF09
CC..09T3..	②	MS4009A	ETF15
CC..09T3..	③	MS4011A	ETF15
CC..1204..	④	MS5011A	.ETF20
