4. STUB/C 內徑車刀

STUB/C 內徑車刀

產品特點

型號 : STUB/C

內徑車刀

產品型錄

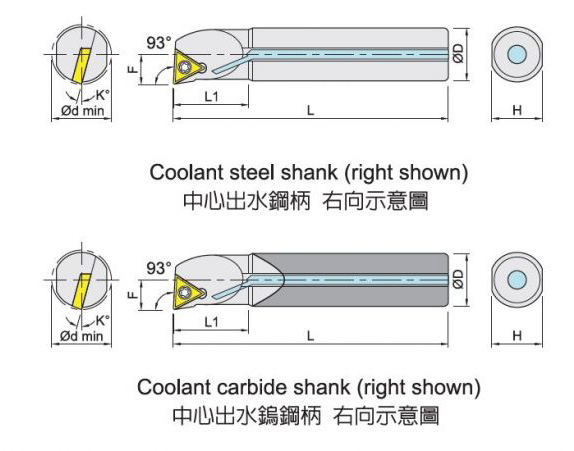

Steel shank Item code		Dimensions,mm							Insert	Spare parts	Weight (KG)
無水孔Non-coolant	水孔Coolant	D	L	L1	F	H	K°	dmin
S06H-STUBR/L-06	--	6	100	15	3.5	5	15	7	TB..0601..	①	0.02
S08K-STUBR/L-06-D09	A08K-STUBR/L-06-D09	8	125	20	4.5	7	15	9			0.07
S08K-STUCR/L-09	A08K-STUCR/L-09	8	125	20	5.5	7	15	10	TC..0902..	②	0.07
S10K-STUCR/L-09	A10K-STUCR/L-09	10	125	22	6	9	13	12		③	0.09
S10K-STUCR/L-09-D11	A10K-STUCR/L-09-D11	10	125	22	5.5	9	13	11			0.09
S12M-STUCR-09	A12M-STUCR-09	12	150	26	8	11	10	16			0.13
S14M-STUCR-09	A14M-STUCR-09	14	150	26	8	13	10	16			0.18
S10K-STUCR/L-11	A10K-STUCR/L-11	10	125	22	6	9	13	12	TC..1102..	④	0.09
S12M-STUCR/L-11	A12M-STUCR/L-11	12	150	26	8	11	10	16			0.13
S12M-STUCR/L-11-D13	A12M-STUCR/L-11-D13	12	150	26	6.5	11	10	13			0.13
S16Q-STUCR/L-11	A16Q-STUCR/L-11	16	180	32	10	15	7	20			0.28
S16Q-STUCR/L-11-D18	A16Q-STUCR/L-11-D18	16	180	32	9	15	7	18			0.28
S20R-STUCR/L-11	S20R-STUCR/L-11	20	200	40	13	18	5	25			0.49
S20R-STUCR/L-16	A20R-STUCR/L-16	20	200	40	13	18	7	25	TC..16T3..	⑤	0.49
S25R-STUCR/L-16	A25R-STUCR/L-16	25	200	40	15	23	5	30			0.77
S32S-STUCR/L-16	A32S-STUCR/L-16	32	250	48	20	30	5	38			1.58
S32T-STUCR/L-16	A32T-STUCR/L-16	32	300	48	20	30	5	38			1.89

Carbide shank Item code		Dimensions,mm							Insert	Spare parts	Weight (KG)
無水孔Non-coolant	水孔Coolant	D	L	L1	F	H	K°	dmin
C06J-STUBR/L-06	--	6	110	15	3.5	5.7	15	7	TB..0601..	①	0.05
C07J-STUBR-06	--	7	110	18	4	6.7	15	8			0.06
C08K-STUBR/L-06-D09	E08K-STUBR/L-06-D09	8	125	20	4.5	7.2	15	9			0.09
C08K-STUCR/L-09		8	125	20	5.5	7.2	15	10	TC..0902..	②	0.09
C10K-STUCR-09		10	125	22	6	9.2	13	12		③	0.14
C10K-STUCR-09-D11		10	125	22	5.5	9.2	13	11			0.14
C10M-STUCR-09		10	150	22	6	9.2	13	12			0.17
C12M-STUCR-09		12	150	26	8	11.2	10	16			0.24
C12Q-STUCR-09		12	180	26	8	11.2	10	16			0.29
C14M-STUCR-09		14	150	26	8	13.2	10	16			0.33
C14R-STUCR-09		14	200	26	8	13.2	10	16			0.44
C10K-STUCR-11	E10K-STUCR-11	10	125	22	6	9.2	13	12	TC..1102..	④	0.14
C10M-STUCR-11	E10M-STUCR-11	10	150	22	6	9.2	13	12			0.17
C12M-STUCR/L-11	E12M-STUCR-11	12	150	26	8	11.2	10	16			0.24
C12M-STUCR-11-D13		12	150	26	6.5	11.2	10	13			0.24
C12Q-STUCR/L-11	E12Q-STUCR-11	12	180	26	8	11.2	10	16			0.29
C12Q-STUCR-11-D13		12	180	26	6.5	11.2	10	13			0.29
C16R-STUCR-11	E16R-STUCR-11	16	200	32	10	15.2	7	20			0.58
C16R-STUCR-11-D18		16	200	32	9	15.2	7	18			0.52
	E20R-STUCR-11	20	200	40	13	18	5	25			0.91

Insert	Spare parts	Screw	Wrench
TB..0601..	①	MS2004A	ETF06
TC..0902..	②	MS2205A	ETF07
TC..0902..	③	MS2206A	ETF07
TC..1102..	④	MS2506A	ETF09
TC..16T3..	⑤	MS4011A	ETF15
