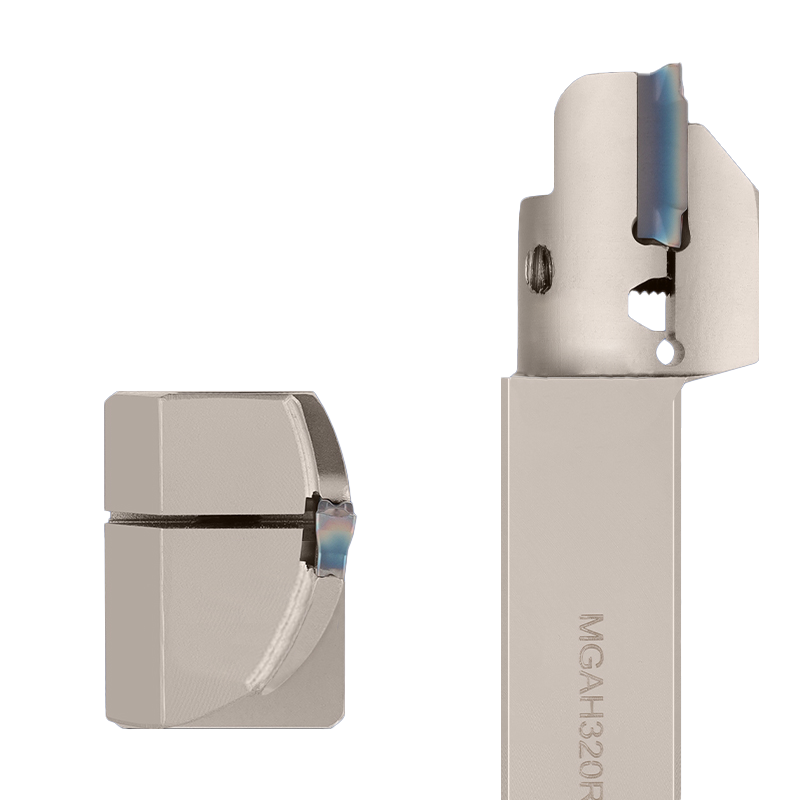

MGAH 端面槽刀
產品特點
型號 : MGAH
彈簧鋼淬火處理、堅固耐用特定材質，穩定性強、抗造耐用
能延長使用壽命。
端面槽刀
產品規格

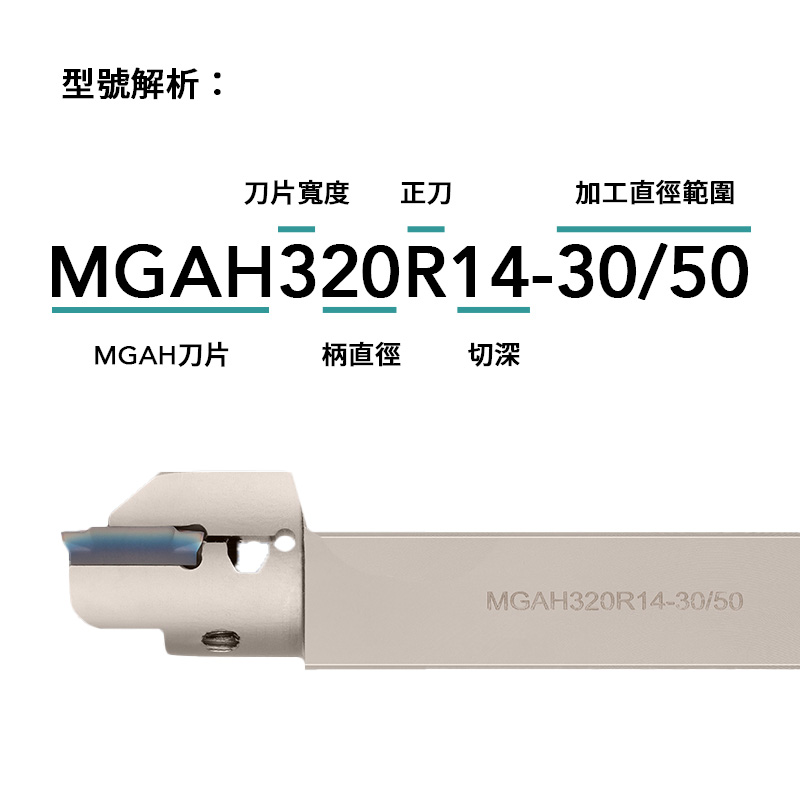

| 訂購編號 | MGAH 刀片 | 刀片寬度 | 柄直徑 | 正刀 | 切深 | 加工 直徑範圍 |
| MGAH220R8-20/36 | MGAH | 2 | 20 | R | 8 | 20/36 |
| MGAH220R10-30/50 | MGAH | 2 | 20 | R | 10 | 30/50 |
| MGAH220R12-50/80 | MGAH | 2 | 20 | R | 12 | 50/80 |
| MGAH220R13-80/160 | MGAH | 2 | 20 | R | 13 | 80/160 |
| MGAH220R13-160/400 | MGAH | 2 | 20 | R | 13 | 160/400 |
| MGAH220R15-200/800 | MGAH | 2 | 20 | R | 15 | 200/800 |
| MGAH320R13-20/36 | MGAH | 3 | 20 | R | 13 | 20/36 |
| MGAH320R14-30/50 | MGAH | 3 | 20 | R | 14 | 30/50 |
| MGAH320R15-40/60 | MGAH | 3 | 20 | R | 15 | 40/60 |
| MGAH320R16-50/80 | MGAH | 3 | 20 | R | 16 | 50/80 |
| MGAH320R17-70/120 | MGAH | 3 | 20 | R | 17 | 70/120 |
| MGAH320R17-80/160 | MGAH | 3 | 20 | R | 17 | 80/160 |
| MGAH320R18-100/220 | MGAH | 3 | 20 | R | 18 | 100/220 |
| MGAH320R18-160/400 | MGAH | 3 | 20 | R | 18 | 160/400 |
| MGAH320R20-200/800 | MGAH | 3 | 20 | R | 20 | 200/800 |
| MGAH420R15-20/36 | MGAH | 4 | 20 | R | 15 | 20/36 |
| MGAH420R15-30/50 | MGAH | 4 | 20 | R | 15 | 30/50 |
| MGAH420R17-40/60 | MGAH | 4 | 20 | R | 17 | 40/60 |
| MGAH420R18-50/80 | MGAH | 4 | 20 | R | 18 | 50/80 |
| MGAH420R19-70/120 | MGAH | 4 | 20 | R | 19 | 70/120 |
| MGAH420R20-80/160 | MGAH | 4 | 20 | R | 20 | 80/160 |
| MGAH420R20-100/220 | MGAH | 4 | 20 | R | 20 | 100/220 |
| MGAH420R22-160/400 | MGAH | 4 | 20 | R | 22 | 160/400 |
| MGAH420R22-200/800 | MGAH | 4 | 20 | R | 22 | 200/800 |
| MGAH325R13-20/36 | MGAH | 3 | 25 | R | 13 | 20/36 |
| MGAH325R14-30/50 | MGAH | 3 | 25 | R | 14 | 30/50 |
| MGAH325R15-40/60 | MGAH | 3 | 25 | R | 15 | 40/60 |
| MGAH325R16-50/80 | MGAH | 3 | 25 | R | 16 | 50/80 |
| MGAH325R17-70/120 | MGAH | 3 | 25 | R | 17 | 70/120 |
| MGAH325R17-80/160 | MGAH | 3 | 25 | R | 17 | 80/160 |
| MGAH325R18-100/220 | MGAH | 3 | 25 | R | 18 | 100/220 |
| MGAH325R18-160/400 | MGAH | 3 | 25 | R | 18 | 160/400 |
| MGAH325R20-200/800 | MGAH | 3 | 25 | R | 20 | 200/800 |
| MGAH425R15-20/36 | MGAH | 4 | 25 | R | 15 | 20/36 |
| MGAH425R16-30/50 | MGAH | 4 | 25 | R | 16 | 30/50 |
| MGAH425R17-40/60 | MGAH | 4 | 25 | R | 17 | 40/60 |
| MGAH425R18-50/80 | MGAH | 4 | 25 | R | 18 | 50/80 |
| MGAH425R19-70/120 | MGAH | 4 | 25 | R | 19 | 70/120 |
| MGAH425R20-80/160 | MGAH | 4 | 25 | R | 20 | 80/160 |
| MGAH425R20-100/220 | MGAH | 4 | 25 | R | 20 | 100/220 |
| MGAH425R22-160/400 | MGAH | 4 | 25 | R | 22 | 160/400 |
| MGAH425R22-200/800 | MGAH | 4 | 25 | R | 22 | 200/800 |
| MGAH525R17-30/50 | MGAH | 5 | 25 | R | 17 | 30/50 |
| MGAH525R22-50/80 | MGAH | 5 | 25 | R | 22 | 50/80 |
| MGAH525R26-80/160 | MGAH | 5 | 25 | R | 26 | 80/160 |
| MGAH525R28-160/400 | MGAH | 5 | 25 | R | 28 | 160/400 |
| MGAH525R30-200/800 | MGAH | 5 | 25 | R | 30 | 200/800 |
| MGAH532-200/800T35 | MGAH | 5 | 32 | 200/800T35 | ||
| MGAH432R25-200/800 | MGAH | 4 | 32 | R | 25 | 200/800 |
| MGAH432R22-100/220 | MGAH | 4 | 32 | R | 22 | 100/220 |
| MGHH425L-50/80T30红色加长 | MGHH | 4 | 25 | L | 50/80T30红色加长 | |
| MGAH225R8-20/36 | MGAH | 2 | 25 | R | 8 | 20/36 |
| MGAH225R10-30/50 | MGAH | 2 | 25 | R | 10 | 30/50 |
| MGAH225R11-40/60 | MGAH | 2 | 25 | R | 11 | 40/60 |
| MGAH225R12-50/80 | MGAH | 2 | 25 | R | 12 | 50/80 |
| MGAH225R13-70/120 | MGAH | 2 | 25 | R | 13 | 70/120 |
| MGAH225R13-80/160 | MGAH | 2 | 25 | R | 13 | 80/160 |
| MGAH225R14-100/220 | MGAH | 2 | 25 | R | 14 | 100/220 |
| MGAH225R15-200/800 | MGAH | 2 | 25 | R | 15 | 200/800 |
| MGAH216R10-50/80 | MGAH | 2 | 16 | R | 10 | 50/80 |
| MGAH216R12-80/160 | MGAH | 2 | 16 | R | 12 | 80/160 |
| MGAH2.520R13-20/36 | MGAH | 2.5 | 20 | R | 13 | 20/36 |
| MGAH2.520R15-30/50 | MGAH | 2.5 | 20 | R | 15 | 30/50 |
| MGAH2.525R13-20/36 | MGAH | 2.5 | 25 | R | 13 | 20/36 |
| MGAH2.525R15-30/50 | MGAH | 2.5 | 25 | R | 15 | 30/50 |
| MGAH2.525R16-50/80 | MGAH | 2.5 | 25 | R | 16 | 50/80 |
| MGAH2.525R17-80/160 | MGAH | 2.5 | 25 | R | 17 | 80/160 |
| MGAH2.525R17-100/220 | MGAH | 2.5 | 25 | R | 17 | 100/220 |
| MGAH2.525R18-160/400 | MGAH | 2.5 | 25 | R | 18 | 160/400 |
| MGAH332R18-100/220 | MGAH | 3 | 32 | R | 18 | 100/220 |
| MGAH332R20-200/800 | MGAH | 3 | 32 | R | 20 | 200/800 |
| MGAH325R25-80/160 | MGAH | 3 | 25 | R | 25 | 80/160 |
產品介紹
