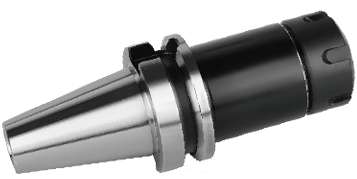

型號 : SK DIN69871-ER

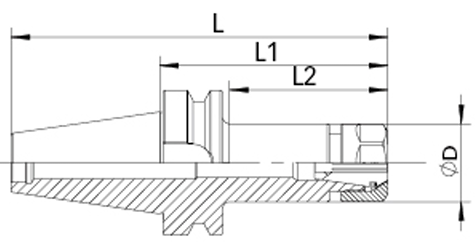

SK DIN69871 (JT /DAT /DV)型號 | 夾持範圍 | D | L1 | 筒夾類型 | 重量(kg) |
SK40 ER16-070 | 1~10 | 28 | 70 | ER16 | 1.30 |
SK40 ER16-100 | 1~10 | 28 | 100 | 1.40 | |
SK40 ER16-150 | 1~10 | 28 | 150 | 1.60 | |
SK40 ER20-080 | 1~13 | 34 | 80 | ER20 | 1.40 |
SK40 ER20-100 | 1~13 | 34 | 100 | 1.50 | |
SK40 ER20-150 | 1~13 | 34 | 150 | 1.80 | |
SK40 ER25-080 | 2~16 | 42 | 80 | ER25 | 1.50 |
SK40 ER25-100 | 2~16 | 42 | 100 | 1.70 | |
SK40 ER25-150 | 2~16 | 42 | 150 | 2.00 | |
SK40 ER32-070 | 2~20 | 50 | 70 | ER32 | 1.40 |
SK40 ER32-100 | 2~20 | 50 | 100 | 1.80 | |
SK40 ER40-080 | 3~26 | 63 | 80 | ER40 | 1.60 |
SK40 ER40-100 | 3~26 | 63 | 100 | 1.90 | |
SK50 ER16-100 | 1~10 | 28 | 100 | ER16 | 3.20 |
SK50 ER16-150 | 1~10 | 28 | 150 | 3.50 | |
SK50 ER20-100 | 1~13 | 34 | 100 | ER20 | 3.40 |
SK50 ER20-150 | 1~13 | 34 | 150 | 3.70 | |
SK50 ER25-100 | 2~16 | 42 | 100 | ER25 | 3.50 |
SK50 ER25-150 | 2~16 | 42 | 150 | 3.80 | |
SK50 ER32-100 | 2~20 | 50 | 100 | ER32 | 3.50 |
SK50 ER32-150 | 2~20 | 50 | 150 | 3.80 | |
SK50 ER40-100 | 3~26 | 63 | 100 | ER40 | 3.80 |
SK50 ER40-150 | 3~26 | 63 | 150 | 4.10 |
