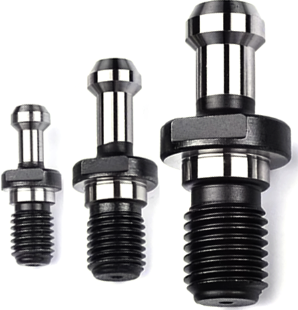

型號 : BT

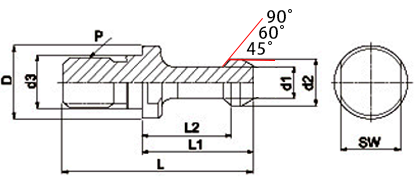

日本標準 JIS MAS403 BT 拉頭日本標準 JIS MAS403 BT 拉頭 | |||||||||||
(mm) | |||||||||||
Model No. | D | d1 | d2 | d3 | L | L1 | L2 | SW | P | Package | Weight (Kgs) |
BT30-45° | 16.5 | 7 | 11 | 12.5 | 43 | 23 | 18 | 13 | M12*1.75 | 50/100PCS | 0.04 |
BT30-60° | 16.5 | 7 | 11 | 12.5 | 43 | 23 | 18 | 13 | M12*1.75 | 50/100PCS | 0.04 |
BT30-90° | 16.5 | 7 | 11 | 12.5 | 43 | 23 | 18 | 13 | M12*1.75 | 50/100PCS | 0.04 |
BT40-45° | 23 | 10 | 15 | 17 | 60 | 35 | 28 | 19 | M16*2.0 | 50/100PCS | 0.11 |
BT40-60° | 23 | 10 | 15 | 17 | 60 | 35 | 28 | 19 | M16*2.0 | 50/100PCS | 0.1 |
BT40-90° | 23 | 10 | 15 | 17 | 60 | 35 | 28 | 19 | M16*2.0 | 50/100PCS | 0.1 |
BT50-45° | 38 | 17 | 23 | 25 | 85 | 45 | 35 | 30 | M24*3.0 | 25/50PCS | 0.3 |
BT50-60° | 38 | 17 | 23 | 25 | 85 | 45 | 35 | 30 | M24*3.0 | 25/50PCS | 0.3 |
BT50-90° | 38 | 17 | 23 | 25 | 85 | 45 | 35 | 30 | M24*3.0 | 25/50PCS | 0.3 |

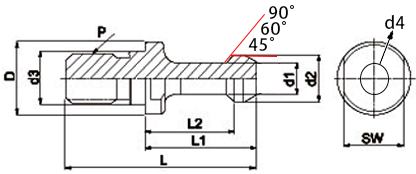

日本標準 JIS MAS403 BT 出水拉頭 | ||||||||||||
(mm) | ||||||||||||
Model No. | D | d1 | d2 | d3 | d4 | L | L1 | L2 | SW | P | Package | Weight (Kgs) |
BT30-45° T | 16.5 | 7 | 11 | 12.5 | 2*3 | 43 | 23 | 18 | 13 | M12*1.75 | 50/100PCS | 0.03 |
BT30-60° T | 16.5 | 7 | 11 | 12.5 | 2*3 | 43 | 23 | 18 | 13 | M12*1.75 | 50/100PCS | 0.03 |
BT40-45° T | 23 | 10 | 15 | 17 | 4 | 60 | 35 | 28 | 19 | M16*2.0 | 50/100PCS | 0.08 |
BT40-60° T | 23 | 10 | 15 | 17 | 4 | 60 | 35 | 28 | 19 | M16*2.0 | 50/100PCS | 0.08 |
BT40-90° T | 23 | 10 | 15 | 17 | 4 | 60 | 35 | 28 | 19 | M16*2.0 | 50/100PCS | 0.08 |
BT40-45° T | 23 | 10 | 15 | 17 | 5 | 60 | 35 | 28 | 19 | M16*2.0 | 50/100PCS | 0.08 |
BT40-60° T | 23 | 10 | 15 | 17 | 5 | 60 | 35 | 28 | 19 | M16*2.0 | 50/100PCS | 0.08 |
BT50-45° T | 38 | 17 | 23 | 25 | 7 | 85 | 45 | 35 | 30 | M24*3.0 | 25/50PCS | 0.28 |
BT50-60° T | 38 | 17 | 23 | 25 | 7 | 85 | 45 | 35 | 30 | M24*3.0 | 25/50PCS | 0.28 |
BT50-90° T | 38 | 17 | 23 | 25 | 7 | 85 | 45 | 35 | 30 | M24*3.0 | 25/50PCS | 0.28 |
