產品特點

型號 : 3JRRR

絞刀精度參考值
1.H6的精度是，上限+0.005 [mm]，下限是0
2.H7的精度是，上限+0.015 [mm]，下限是0
3.H8的精度是，上限+0.022 [mm]，下限是+0 014
4.H9的精度是，上限+0.036 [mm]，下限是+0.023

鎢鋼鋁用絞刀 H6

鎢鋼鋁用絞刀  公差+0.005

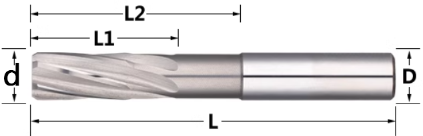

(直徑範圍)x L2 x 柄 x總長	牌價	L1	L2	D
(d0.8~D0.89)x11x3Dx50L	1428	6	11	3柄
(d0.9~D0.99)x13x3Dx50L	1320	7	13
(d1.0~D1.09)x13x3Dx50L		7	13
(d1.1~D1.4)x14x3Dx50L		7	14
(d1.41~D1.5)x17x3Dx50L	1050	9	17
(d1.51~D1.99)x17x3Dx50L			17
(d2.0~D2.49)x20x3Dx50L		10	20
(d2.5~D3.0)x22x3Dx50L		12	22
(d3.01~D3.5)x23x4Dx50L			23	4柄
(d3.51~D4.0)x23x4Dx50L		15	23
(d4.01~D4.05)x23x5Dx50L	1360	17	23	5柄
(d4.06~D4.29)x23x5Dx50L			23
(d4.3~D4.5)x23x5Dx50L			23
(d4.51~D5.0)x25x5Dx50L			25
(d5.01~D5.05)x25x6Dx50L	1700	20	25	6柄
(d5.06~D5.5)x25x6Dx50L			25
(d5.51~D6.0)x26x6Dx50L			26
(d6.05~D6.9)x35x7Dx60L	2310		35	7柄
(d6.95~D7.0)x35x7Dx60L			35
(d7.1~D8.0)x35x8xD60L	2800	24	47	8柄
(d8.1~D8.9)x47x9Dx75L	3360	25	47	9柄
(d8.95~D9.0)x47x9Dx75L		25	47
(d9.1~D10.0)x47x10Dx75L	3750	25	47	10柄
(d10.1~D10.9)x47x11Dx75L	3980	25	47	11柄
(d11.0~D11.9)x47x12Dx75L	4760	25	47	12柄
(d11.95~D12.0)x47x12Dx75L		25	47
(d12.1~D13.0)x53x13Dx80L	5320	35	53	13柄
(d13.1~D13.5)x53x14Dx80L	6080	35	53	14柄
(d14.1~D14.5)x53x15Dx80L	9990	35	53	15柄
