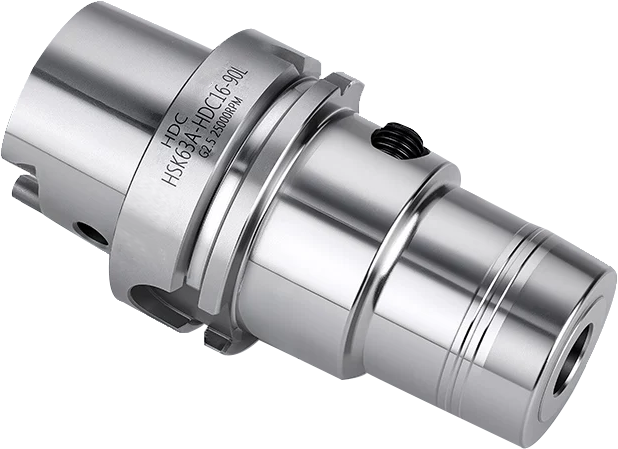

HDC 高精度液壓刀桿
產品特點
型號 : HDC
型號 : HDC高精度液壓刀桿液壓刀桿（又稱油壓刀把）是一種利用液壓技術夾持刀具的高精度夾持裝置。其工作原理是利用內部液壓腔的壓力來夾緊刀具——當調整刀桿上的螺栓或注油孔時，液壓油流動並產生均勻壓力，使刀具穩定固定在刀桿中。
主要優點
液壓刀柄以高精度、便捷的操作性（只需一支T型扳手即可鎖緊）、多樣化選擇等特性著稱，使用場合越來越廣泛。

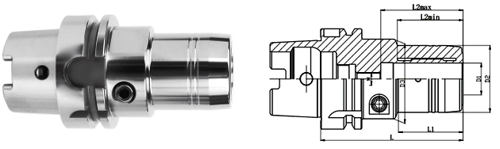

高精度液壓刀桿
型 號 | D1 | D2 | D3 | L | L1 | M |
HSK63A-HDC06-80L | 6 | 32 | 48 | 80 | 32 | M5 |
HSK63A-HDC06-125L | 125 | 38.5 | ||||
HSK63A-HDC08-80L | 8 | 34 | 50 | 80 | 32 | M6 |
HSK63A-HDC08-125L | 125 | 38.5 | ||||
HSK63A-HDC10-80L | 10 | 36 | 50 | 80 | 32 | M8 |
HSK63A-HDC10-125L | 125 | 40 | ||||
HSK63A-HDC12-80L | 12 | 38 | 50 | 80 | 32 | M8 |
HSK63A-HDC12-125 | 125 | 41 | ||||
HSK63A-HDC14-80L | 14 | 40 | 50 | 80 | 40 | M8 |
HSK63A-HDC14-125L | 125 | 43 | ||||
HSK63A-HDC16-90L | 16 | 42 | 50 | 90 | 41 | M8 |
HSK63A-HDC16-125L | 125 | 43 | ||||
HSK63A-HDC18-90L | 18 | 42 | 50 | 80 | 41 | M8 |
HSK63A-HDC20-90L | 20 | 44 | 50 | 90 | 41 | M8 |
HSK63A-HDC20-150L | 150 | 41 | ||||
HSK63A-HDC20-200L | 200 | 45 | ||||
HSK63A-HDC25-110L | 25 | 53 | 63 | 110 | 56 | M8 |
HSK63A-HDC25-150L | 150 | |||||
HSK63A-HDC25-200L | 200 | |||||
HSK63A-HDC32-110L | 32 | 63 | 63 | 110 | M8 | |
HSK63A-HDC32-150L | 150 | |||||
HSK63A-HDC32-200L | 200 |
型 號 | D1 | D2 | D3 | L | L1 | M |
HSK100A-HDC06-90L | 6 | 30 | 48 | 90 | 31 | M5 |
HSK100A-HDC08-90L | 8 | 32 | 48 | 90 | 31 | M6 |
HSK100A-HDC10-105L | 10 | 36 | 50 | 105 | 38 | M8 |
HSK100A-HDC12-105L | 12 | 38 | 52 | 105 | 40 | M8 |
HSK100A-HDC14-105L | 14 | 38 | 52 | 105 | 41 | M8 |
HSK100A-HDC16-105L | 16 | 41 | 54 | 105 | 42 | M12 |
HSK100A-HDC18-105 | 18 | 42 | 50 | 105 | 41 | M12 |
HSK100A-HDC20-105L | 20 | 43 | 54 | 105 | 41 | M12 |
HSK100A-HDC25-110L | 25 | 52 | 62 | 110 | 55 | M12 |
HSK100A-HDC32-110L | 32 | 63 | 73 | 110 | 57 | M12 |
